Introduction |
Horizontal Brite Tank - a turnkey project, made of the stainless steel 304. The main purpose of equipment design is to provide customers with double or triple beer brewing capacity on the basis of the same floor area.
- The Horizontal Brite Tank is a turnkey project, and the raw materials are all food-grade 304 stainless steel.
- The Horizontal Brite Tank consists of 2-3 separate brite tanks, each tank has the same effective volume, and we can provide you with customized services according to your brewing needs and actual conditions.
- The Horizontal Brite Tank consists of two layers, the basic structure is: inner layer + cooling jacket + insulation jacket + outer layer.
Specifications |

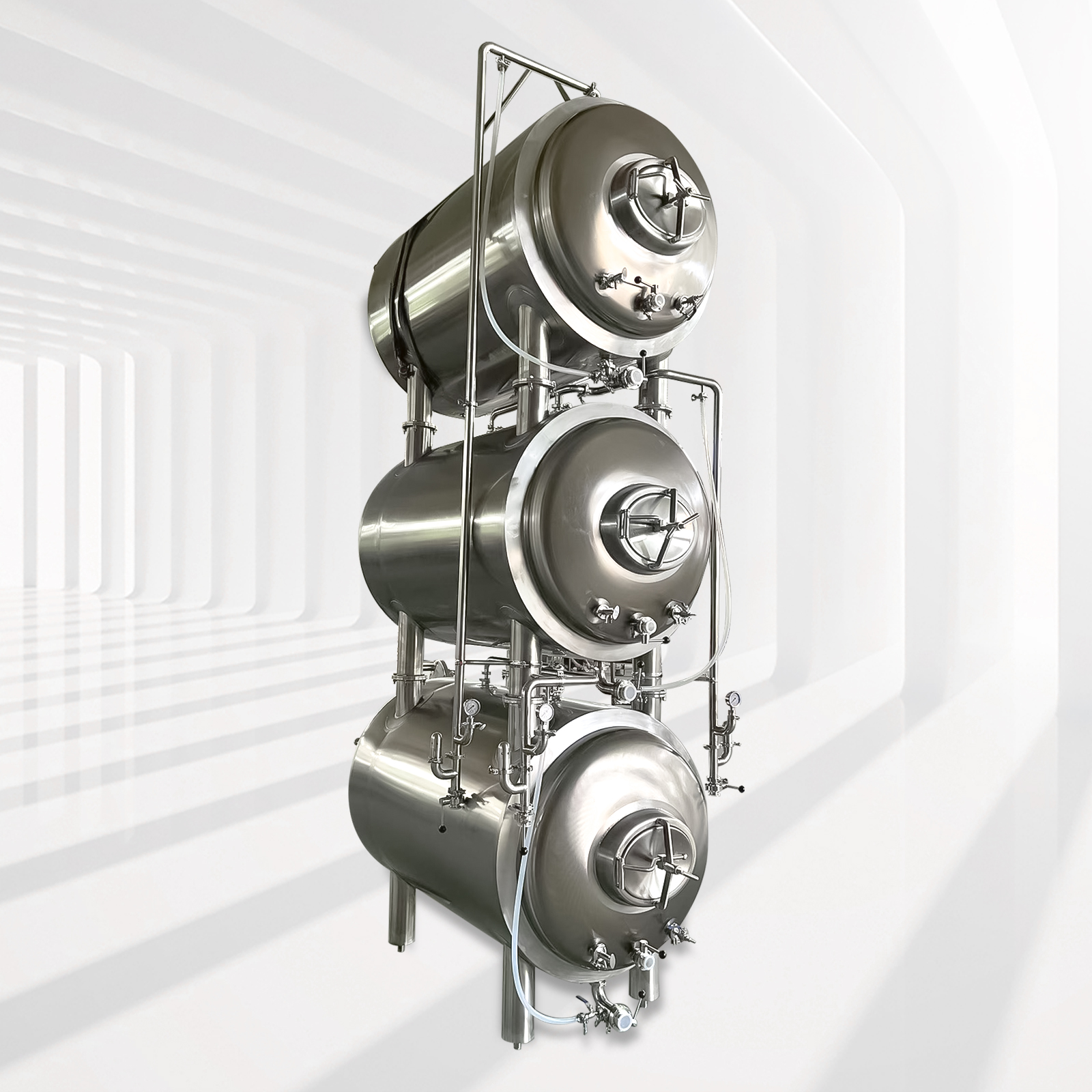

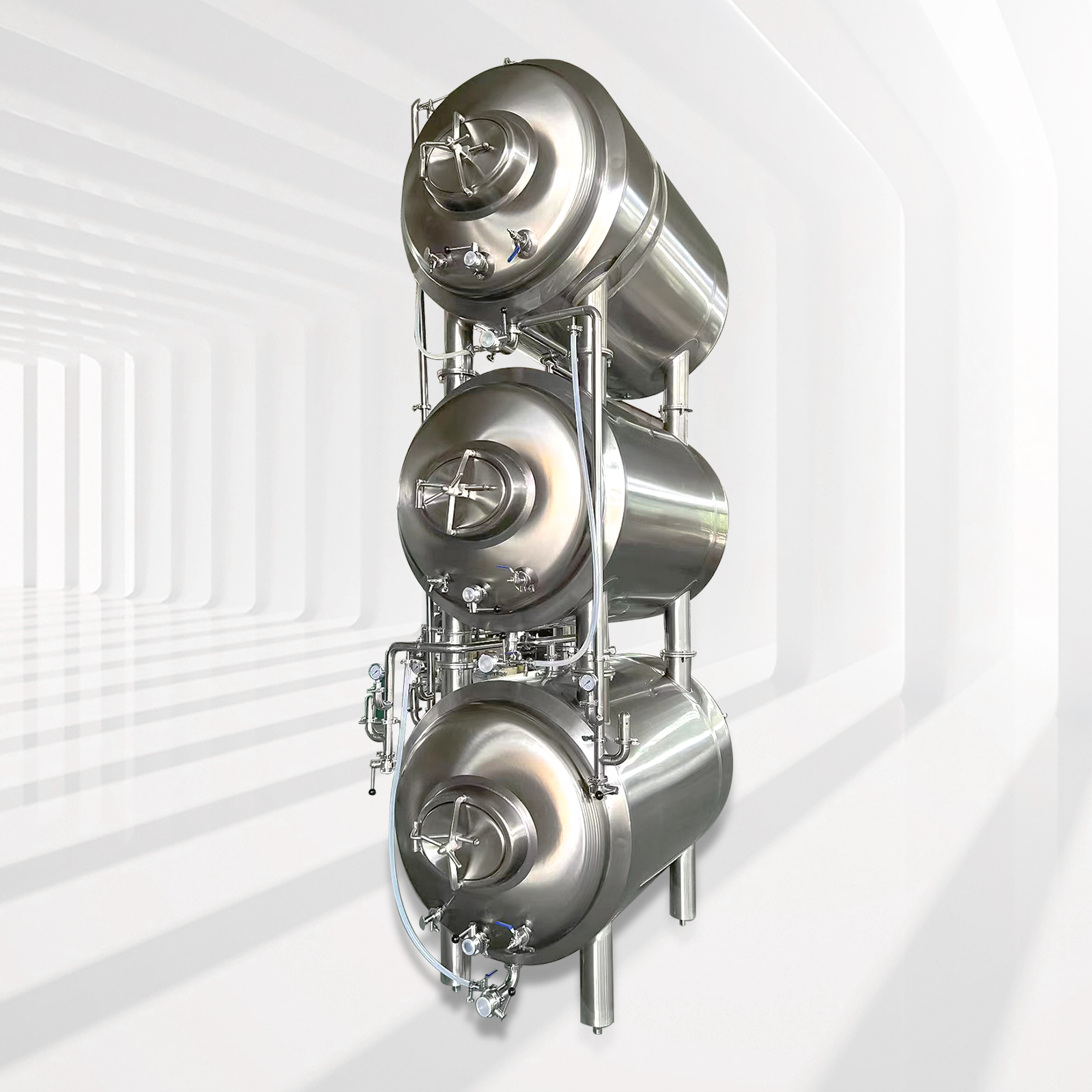

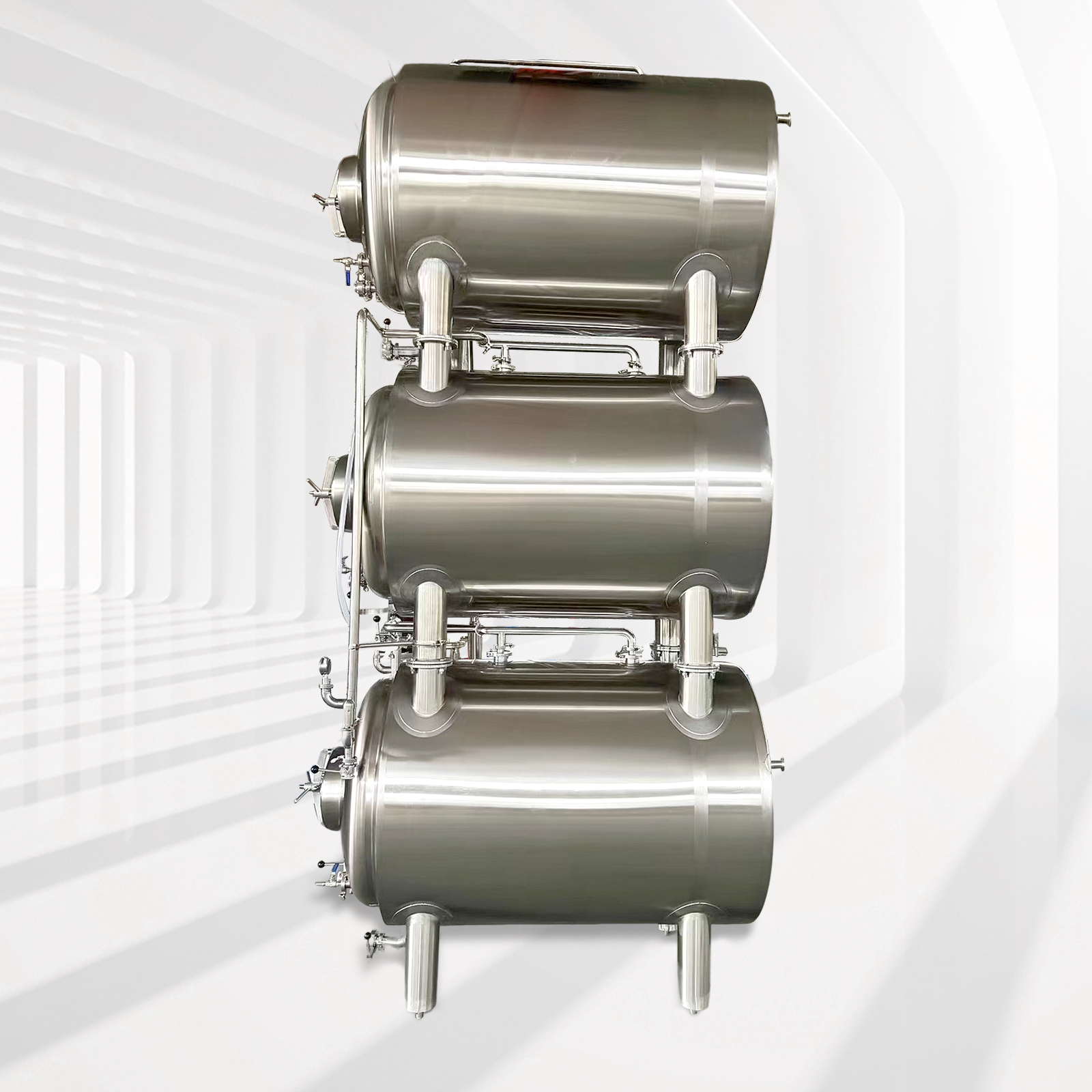

>> Triple Horizontal Brite Tank:
* Included the 3 tanks, the effective volume of each brite tank is 1000L, and the total volume of each brite tank is 1250L;
* Installing Method: Assembled ready to use;
* Cooling Method: Glycol Water circulation in tank's jacket;
* 100% high accuracy TIG welding;
* Design pressure 0.3MPa; Working pressure 0.15Mpa;
* Inner-jacket (SUS304) thickness: 3mm, pickling and passivating treated;
* External-Jacket(SUS304) thickness: 2mm, Hairline polishing;
* Insulation layer: PU-thickness= 80mm;
* Dimension: 2025mm*1316mm*4102mm;
* All accessories on the equipment are included;
* As a direct factory, we can provide you with the free consulation service, customize service and professional suggested solution according to your requirements.
Configurations | ||||
CIP Arm & CIP Cleaning Ball | Level Gauge | Top Pressure Relief Valve | Sample Valve | Carbonation port & fittings |
Pressure Gauge | Pressure Relief Valev | Side Manway | Drain Outlet | flange connection |
Inner Situation
Pressure Gauge & Pressure Relief Valve
Flange
Adjustable pads with bolts
>> Horizontal Brite Tank:
Certification |
Delivery & Shipping |
Inner stretching membrane and PE paper and outer steel frame, and other packaging for shipping.
- Main beer brewing tanks, fermenting vessels and turnkey brewhouse system will be packaged with plastic film firstly, then with reinforced steel frames.
- All beer brewing spare parts, accessories and fittings will be packaged with carton box and crated.
- All items wrapped with soft package for protection.
- Each parts of whole brewing system will be labeled.
