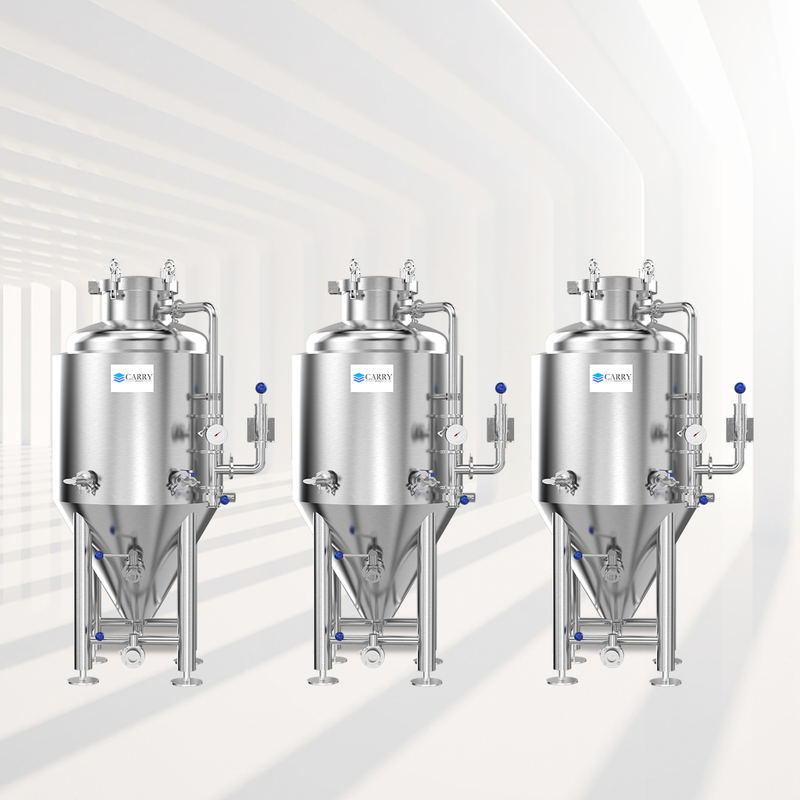

100L Fermentation Tank

Quantity:
Effective volume:	Please select 100L(MOQ=3sets) 1BBL(MOQ=3sets) 200L 2BBL 300L 3BBL 400L 4BBL Customized
Optional Configuration:	Please select Carbonating Fittings Dry hopping Port Spunding Valve OEM Logo
Availability:





Inquire Add to Basket

Product Description

Fermentation tank, you may also heard some other names as conical fermenter, fermentation vessels, Unitank, or even FV, made by 304 sanitized stainless steel, 100% TIG Welding, is the key part to hold wort after brewing and turns it into beers in days.

Configuration

1. Effective=100L, with extra 25% head space

2. Made by SUS 304 Stainless steel, 100% TIG welded with 316 wire

3. Inner layer=3mm, pickling and passivating treated

4. outer layer=2mm, Hairline polishing

5. Dimple glycol cooling jacket

6. PU Insulation layer=80mm on side and cone bottom

7. Design pressure 0.3MPa; Working pressure 0.15Mpa.

8. 60°Conical Cone bottom

9. 4 x heavy duty legs with leveling foot pads

It comes with:

1. Top Manway, flange type

2. CIP arm with internal 360°spray ball

3. Pressure relief valve

4. Pressure Gauge

5. Temperature Gauge

6. Sample valve

7. Beer outlet on cone

8. Bottom drain port

9. PT-100 Temperature sensor

10. Complete fittings, valves

You can also upgrade your fermentation tank with below options:

Spunding Valve

Carbonation Fittings

Glycol Chiller Unit

Wheels (100L &200L)

Dry Hops Adding Device

Dry hops adding device for 100L~300L Fermenters

Connect onto the top dry hopping port

don't miss it out if you are adding hops on the cold side.

Let's dry hopping to add aroma into our beers.

Glycol Cooling Pipelines between chiller & fermenter

We provide turnkey solution for your fermenting system as well. Please let us know if you have a confirmed premise and floor dimenions, we will work out the layout for you.

Hard pipeline connections is options for you to finalize cooling loops between chiller unit and fermenters cooling jacket. Easy to go.

Parameter

Serial Number	Effective Volume	Dimension
CR-FS100	100L	Φ640*1400mm
CR-FS1BBL	1BBL	Φ640*1450mm
CR-FS150	150L	Φ740*1600mm
CR-FS200	200L	Φ740*1700mm
CR-FS2BBL	2BBL	Φ740*1750mm
CR-FS250	250L	Φ860*1790mm
CR-FS300	300L	Φ860*1900mm
CR-FS3BBL	3BBL	Φ860*1950mm
CR-FS400	400L	Φ960*1950mm
CR-FS500	500L	Φ1060*2070mm
...	...	...
