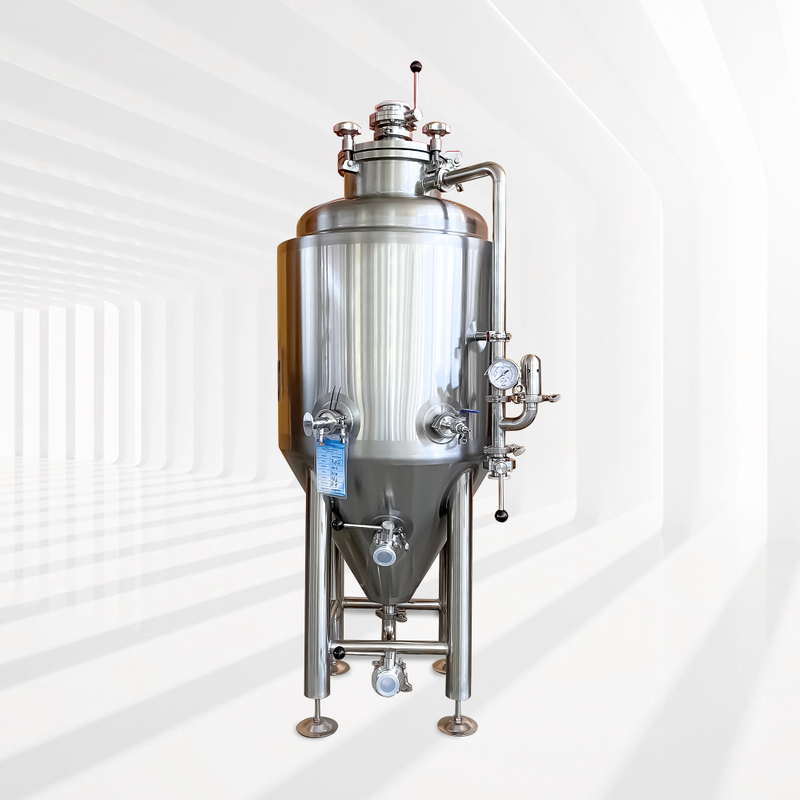

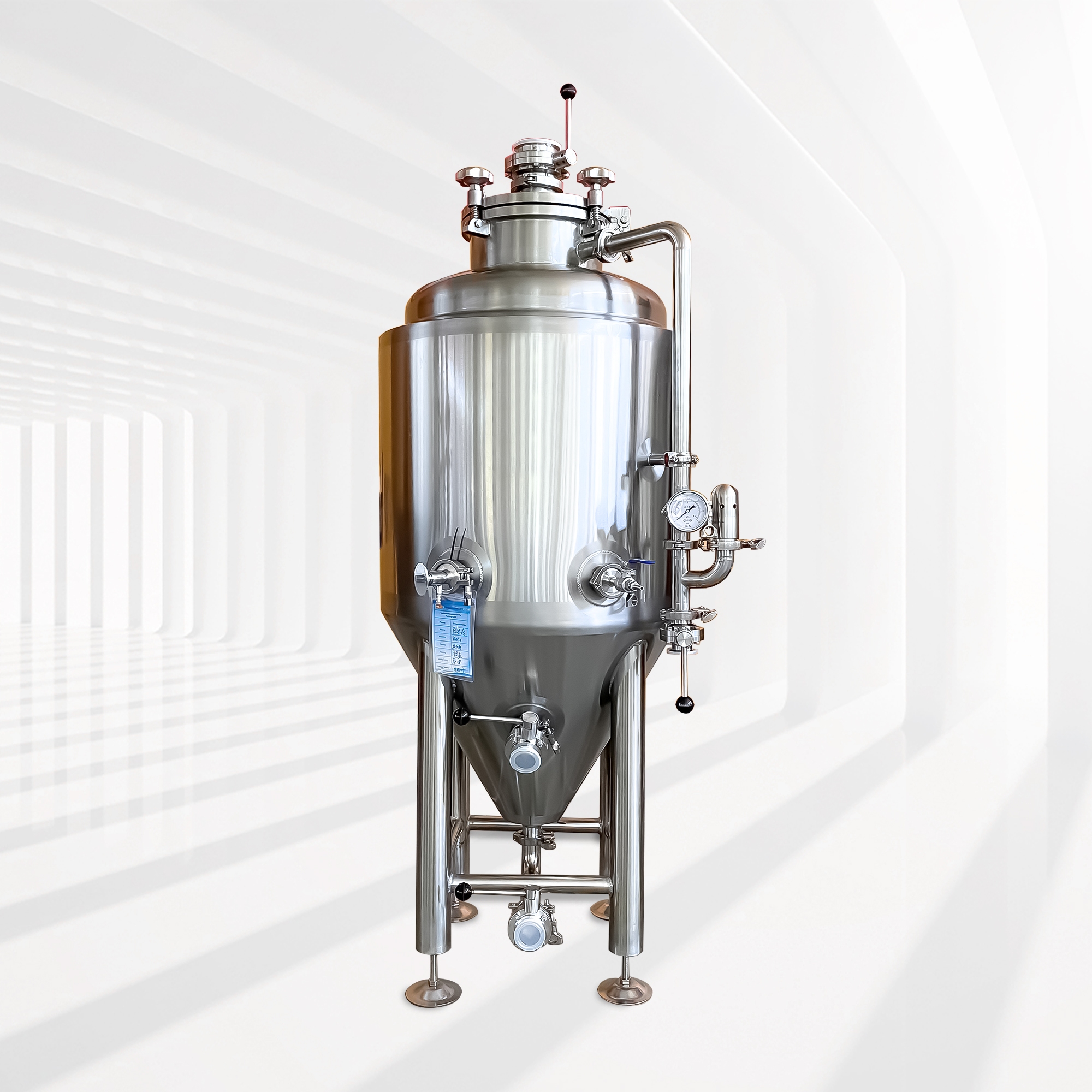

400L Fermentation Tank Unitank


Effective volume:	Please select 500L 600L 5BBL 800L 7BBL 1000L 10BBL Customized
Optional Configuration:	Please select Carbonating Fittings Dry hopping Port Spunding Valve OEM Logo
Availability:

Product Description

Fermentation tank, you may also heard some other names as conical fermenter, fermentation vessels, Unitank, or even FV, made by 304 sanitized stainless steel, 100% TIG Welding, is the key part to hold wort after brewing and turns it into beers in days.

Configuration

1. Effective=400L, with extra 25% head space

2. Made by SUS 304 Stainless steel, 100% TIG welded with 316 wire

3. Inner layer=3mm, pickling and passivating treated

4. outer layer=2mm, Hairline polishing

5. Dimple glycol cooling jacket

6. PU Insulation layer=80mm on side and cone bottom

7. Design pressure 0.3MPa; Working pressure 0.15Mpa.

8. 60°Conical Cone bottom

9. 4 x heavy duty legs with leveling foot pads

It comes with:

1. Side Manway, shadowless type

2. CIP arm with internal 360°spray ball

3. Pressure relief valve

5. Pressure Gauge

6. Temperature Gauge

7. Sample valve

8. Beer outlet on cone

9. Bottom drain port

10. PT-100 Temperature sensor

11. Complete fittings, valves

You can also upgrade your fermentation tank with below options:

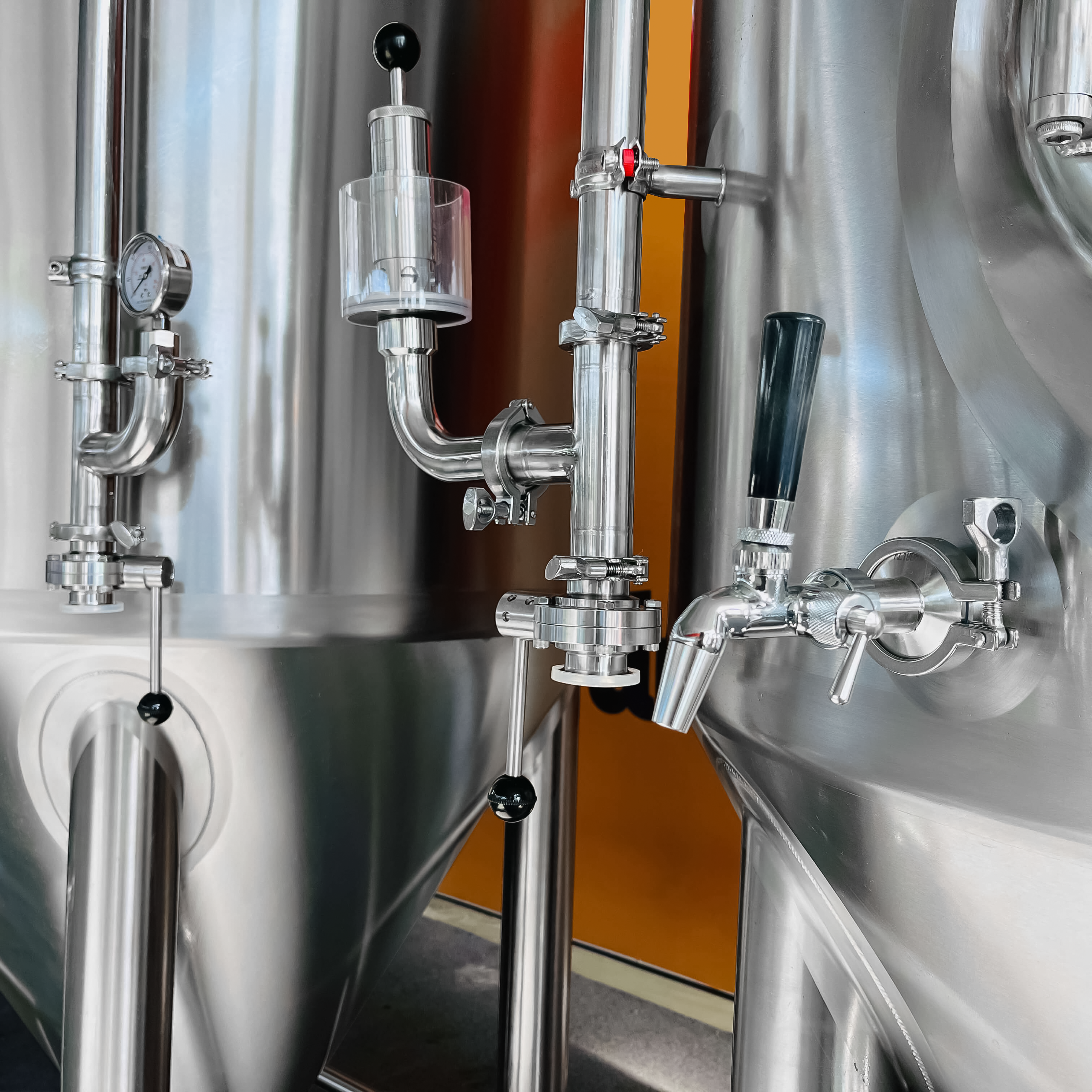

Spunding Valve

Carbonation Fittings

Kegland NUKTAP sample valve

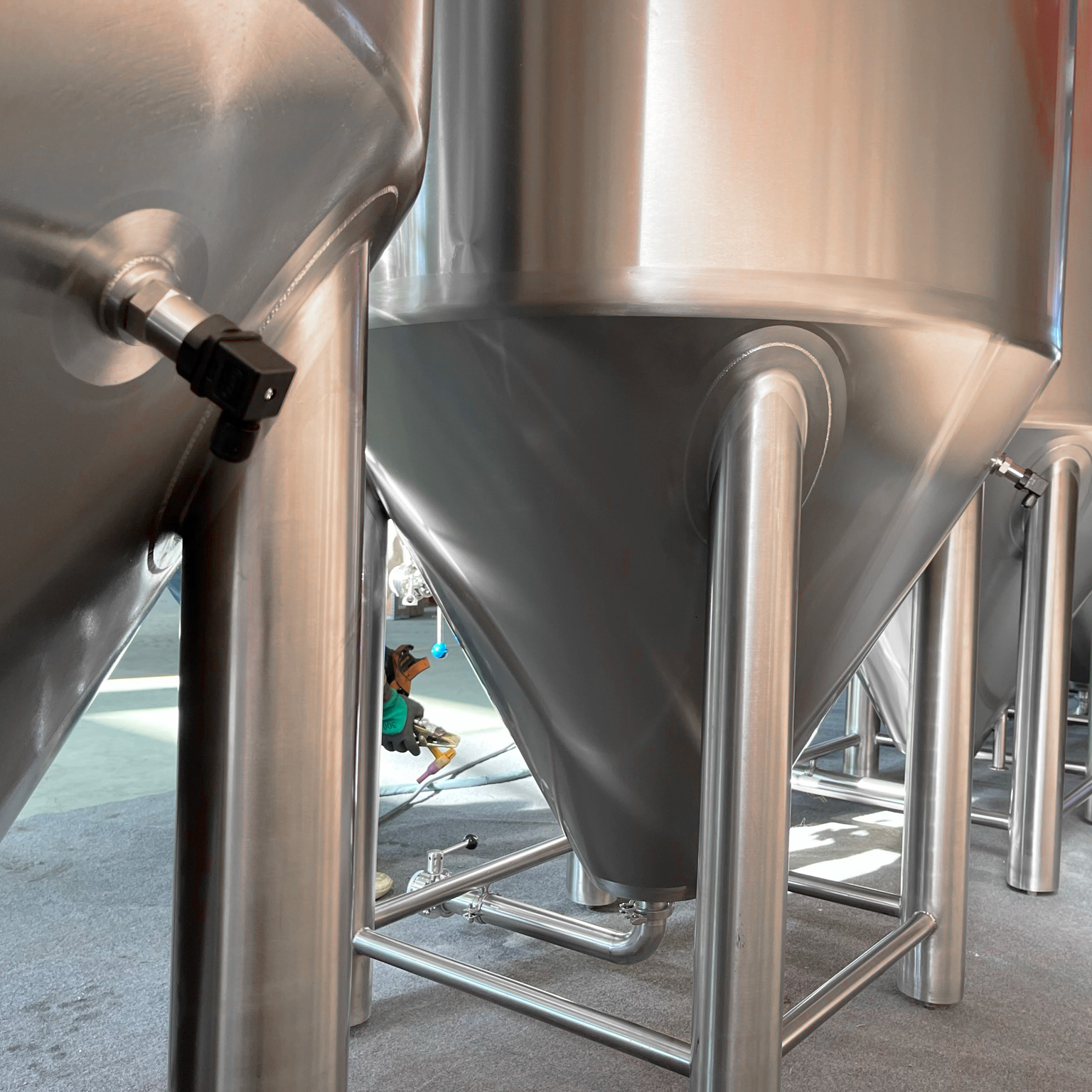

carry brewtech 400L conical fermenter side manway (5)

Rotary Device

Hop Doser-wite

Dry Hops Adding Device

Dry hops adding device for 300L~800L Fermenters

Connect onto the top dry hopping port

don't miss it out if you are adding hops on the cold side.

Let's dry hopping to add aroma into our beers.

1000L sidemanway fermenter tankwith glycol cooling pipeline

Glycol Cooling Pipelines between chiller & fermenter

We provide turnkey solution for your fermenting system as well. Please let us know if you have a confirmed premise and floor dimenions, we will work out the layout for you.

Hard pipeline connections is options for you to finalize cooling loops between chiller unit and fermenters cooling jacket. Easy to go.

Parameter

Serial Number	Effective Volume	Dimension
CR-FM500	500L	Φ1060*2100mm
CR-FM5BBL	5BBL	Φ1060*2300mm
CR-FM600	600L	Φ1060*2200mm
CR-FM7BBL	7BBL	Φ1060*2400mm
CR-FM800	800L	Φ1160*2450mm
CR-FM1000	1000L	Φ1260*2560mm
CR-FM10BBL	10BBL	Φ1260*2700mm
CR-FM1500	1500L	Φ1360*2890mm
CR-FM2000	2000L	Φ1560*3100mm
...	...	...
