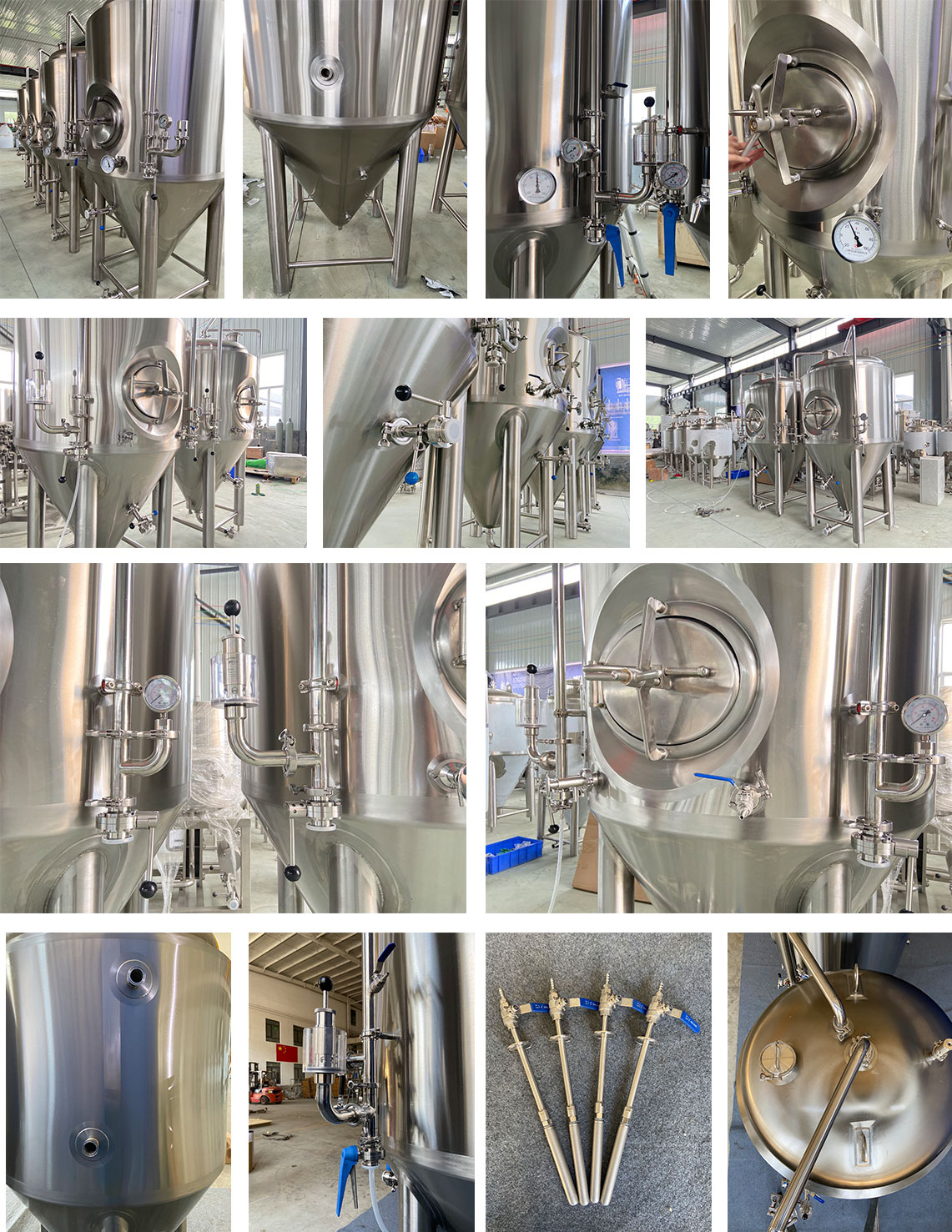

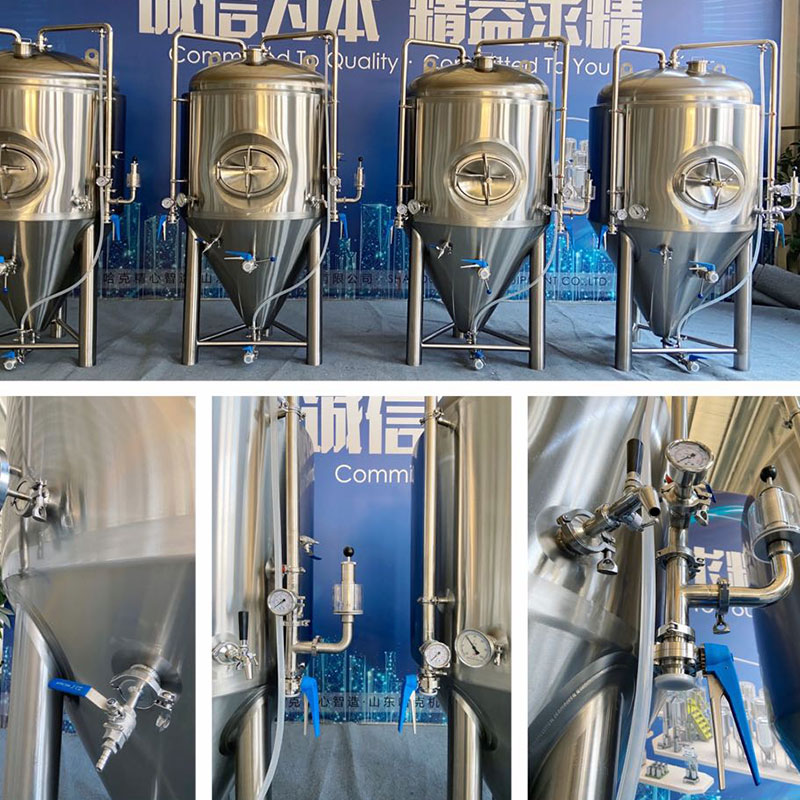

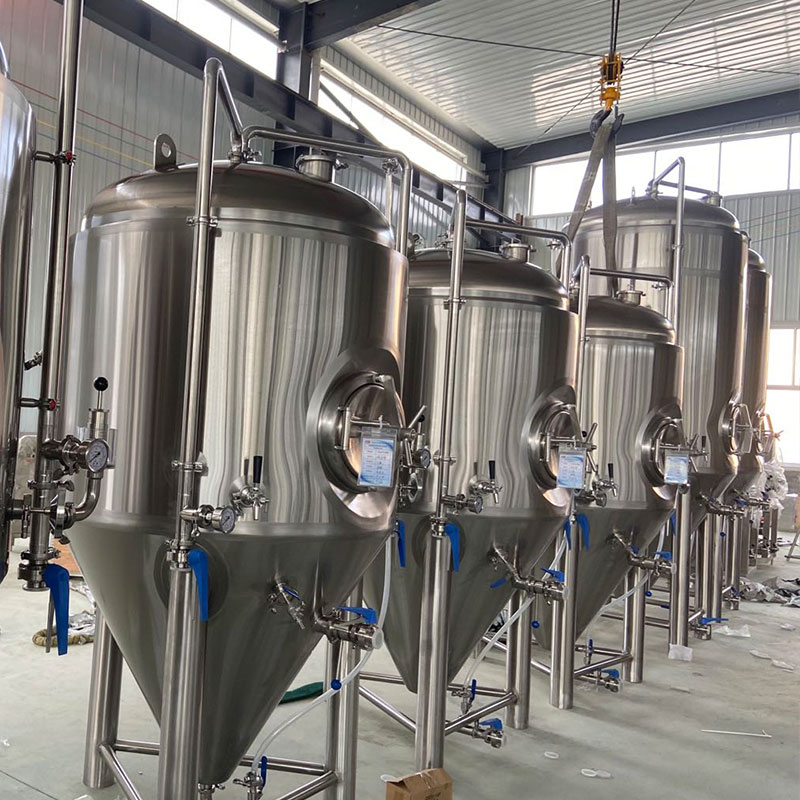

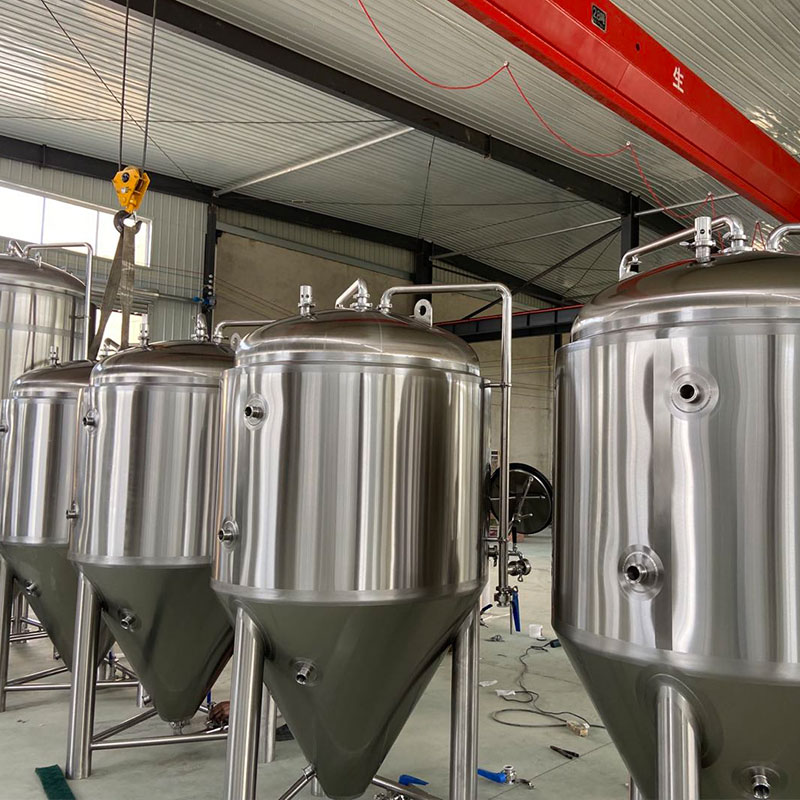

Fermentation tank, you may also heard some other names as conical fermenter, fermentation vessels, Unitank, or even FV, made by 304 sanitized stainless steel, 100% TIG Welding, is the key part to hold wort after brewing and turns it into beers in days.
Configuration
1. Effective=500L, with extra 25% head space
2. Made by SUS 304 Stainless steel, 100% TIG welded with 316 wire
3. Inner layer=3mm, pickling and passivating treated
4. outer layer=2mm, Hairline polishing
5. Dimple glycol cooling jacket
6. PU Insulation layer=80mm on side and cone bottom
7. Design pressure 0.3MPa; Working pressure 0.15Mpa.
8. 60°Conical Cone bottom
9. 4 x heavy duty legs with leveling foot pads
It comes with:
1. Side manway, shadow-less
2. CIP arm with internal 360°spray ball
3. Lifting lugs
4. Pressure relief valve
5. Pressure Gauge
6. Temperature Gauge
7. Sample valve
8. Beer outlet on cone
9. Bottom drain port
10. PT-100 Temperature sensor
11. Complete fittings, valves
You can also upgrade your fermentation tank with below options:
1. Additional CO2 Blow off pipeline
2. Carbonation Port & fittings
3. Top mounted dry hops adding port
4. Glycol water pipelines to fit your brewery layout
Parameter
Serial Number | Effective Volume | Dimension |
FM-500 | 500L | Φ1060*2100mm |
FM-5BBL | 5BBL | Φ1060*2300mm |
FM-600 | 600L | Φ1060*2200mm |
FM-7BBL | 7BBL | Φ1060*2400mm |
FM-800 | 800L | Φ1160*2450mm |
FM-1000 | 1000L | Φ1260*2560mm |
FM-10BBL | 10BBL | Φ1260*2700mm |
FM-1500 | 1500L | Φ1360*2890mm |
FM-2000 | 2000L | Φ1560*3100mm |
... | ... | ... |
Getting your tanks from the direct factory, our team is ready to provide 100% customized products to meet any of your special requirements.
