50L CIP Cleaning Cart for Small Breweries

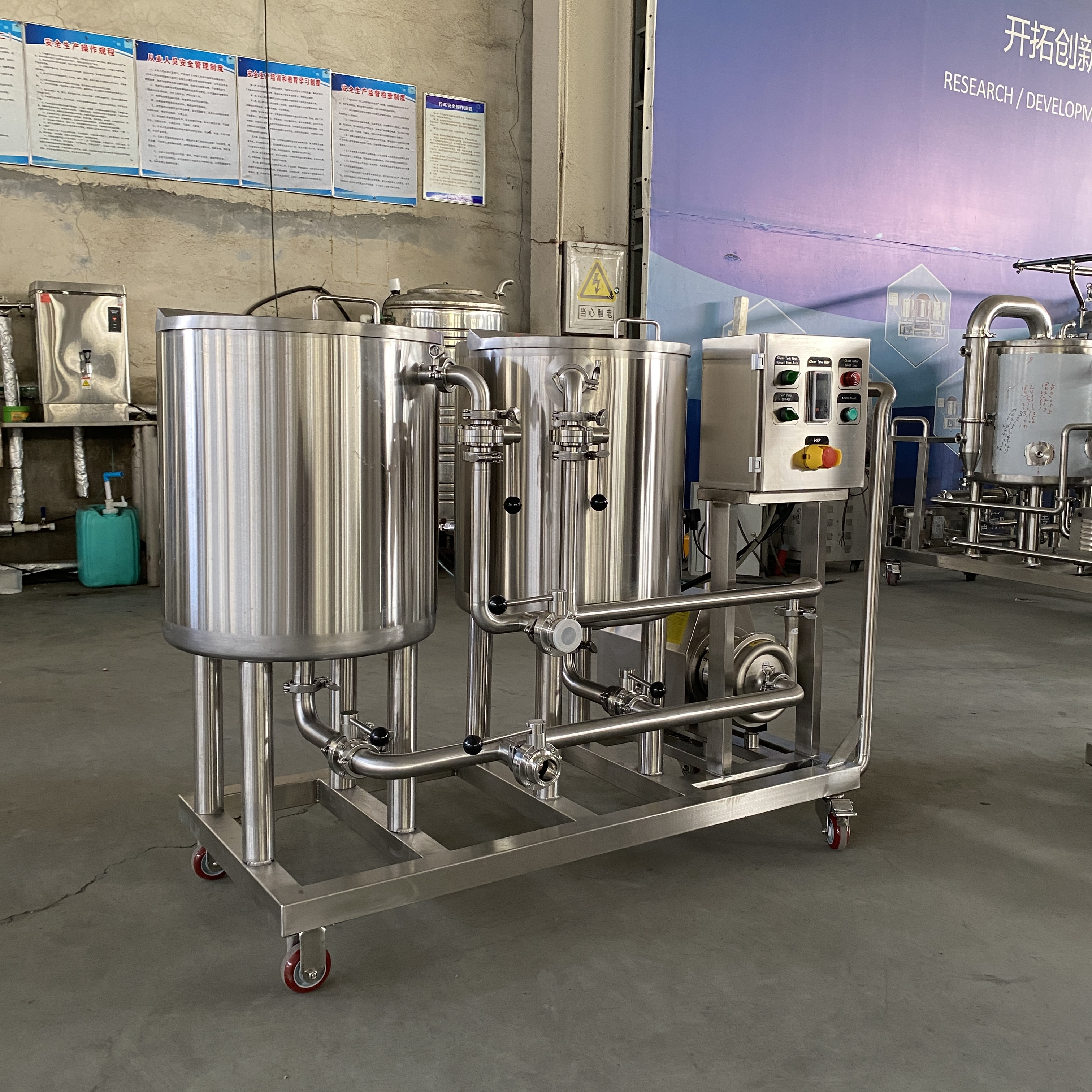

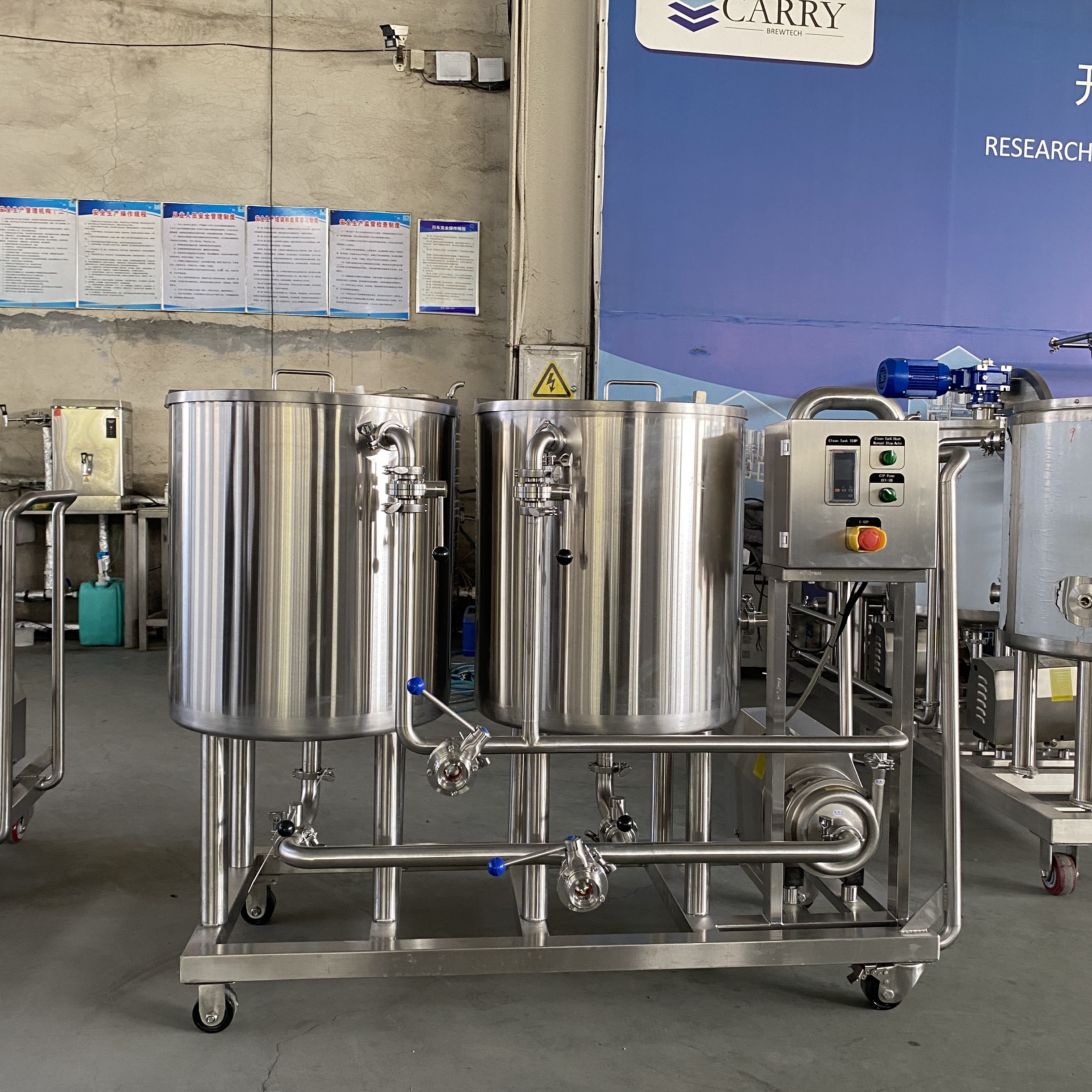

The CARRY Brewtech 50L CIP Cleaning Cart is a compact, mobile solution for cleaning compatible brewery vessels and process lines. Its stainless-steel cart integrates cleaning tanks, circulation pipework, a pump and a control panel in one convenient unit. It helps make routine cleaning more organized for pilot breweries, craft breweries and small beverage-production facilities.

Key Features

· Compact 50L format for small-scale brewing operations.

· Mobile stainless-steel frame with wheels for convenient positioning.

· Integrated tanks, pump, pipework and control panel.

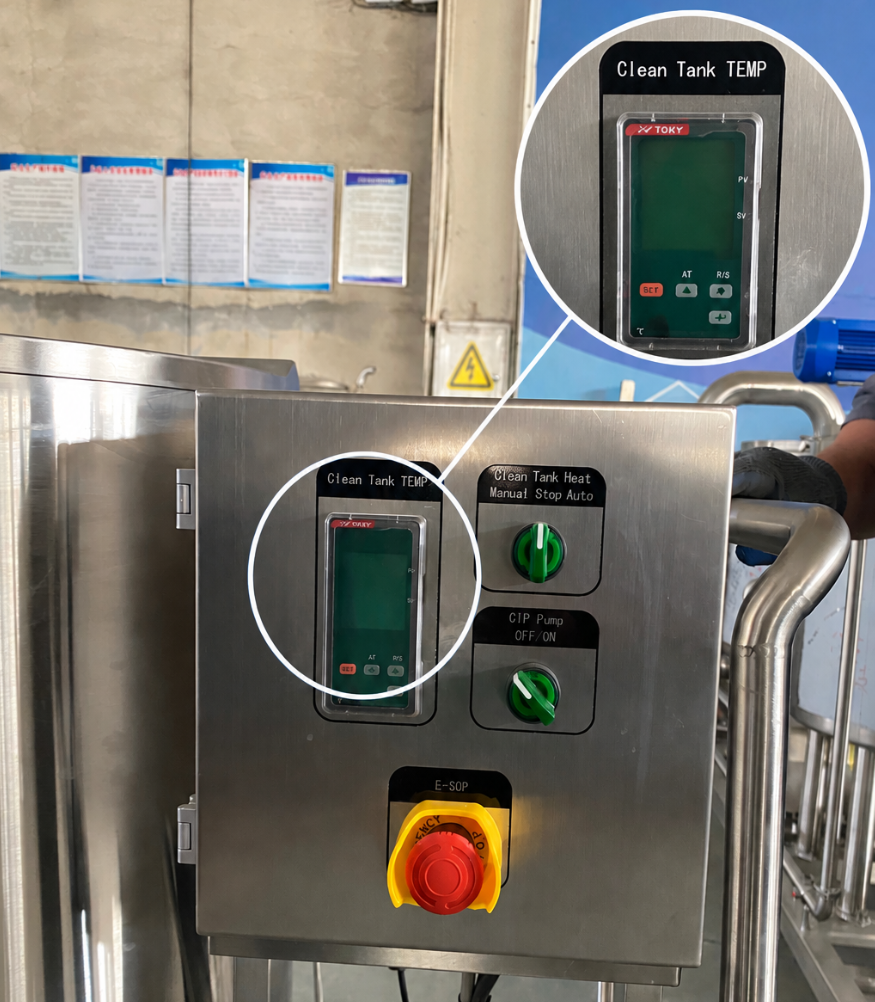

· Temperature Controller Upgrade to a TOKY temperature controller, easy-to-read temperature readings for convenient monitoring.

Technical Specifications

Capacity		50L

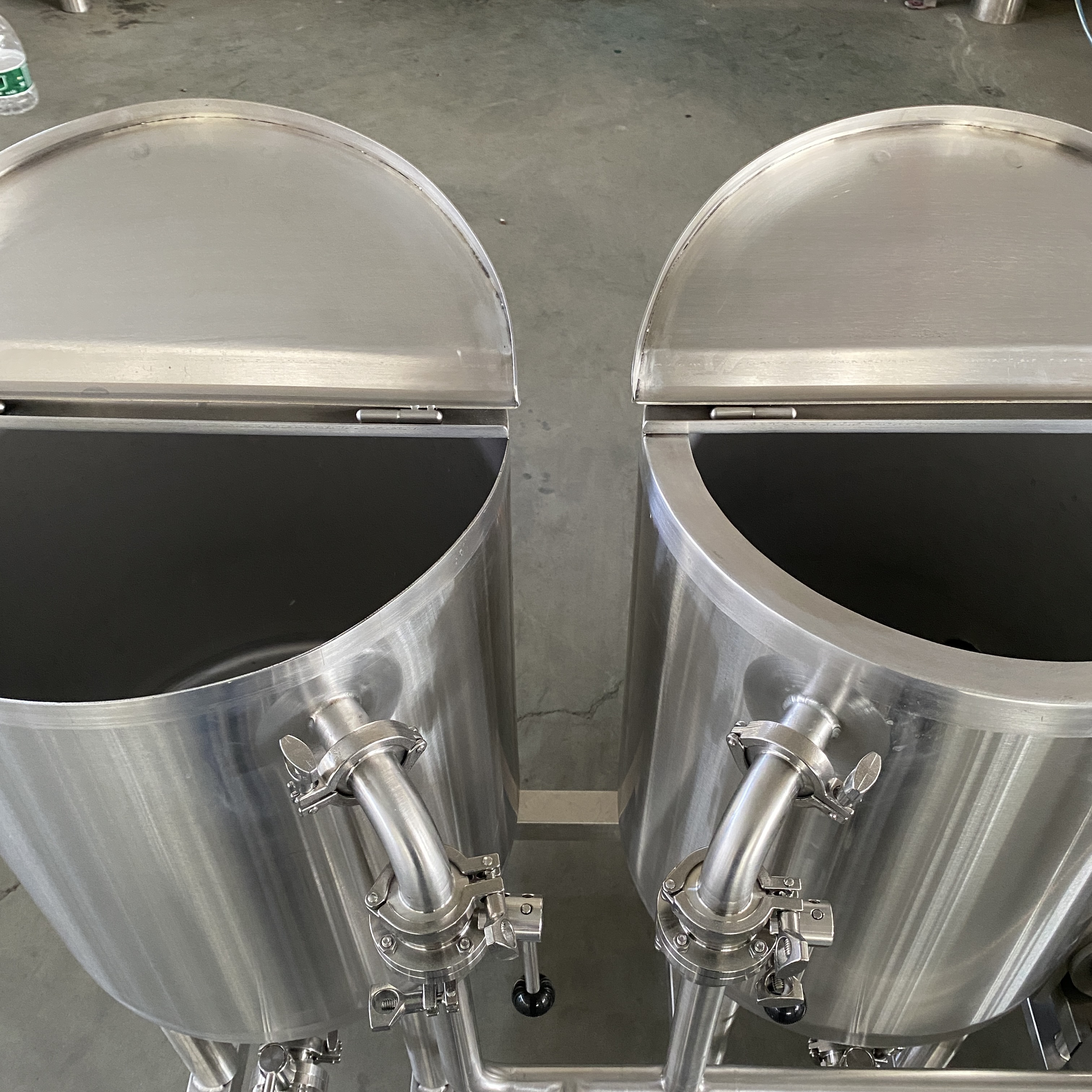

Tank arrangement		2 tanks: disinfection tank and Alkali tank
Material		SUS304 Materia
Pump flow/head		3T/H, 18m
Heating method/power		3kW heating element
Power supply		Can be customized
Dimensions/weight		1419mm*684mm*1071mm, 190KG

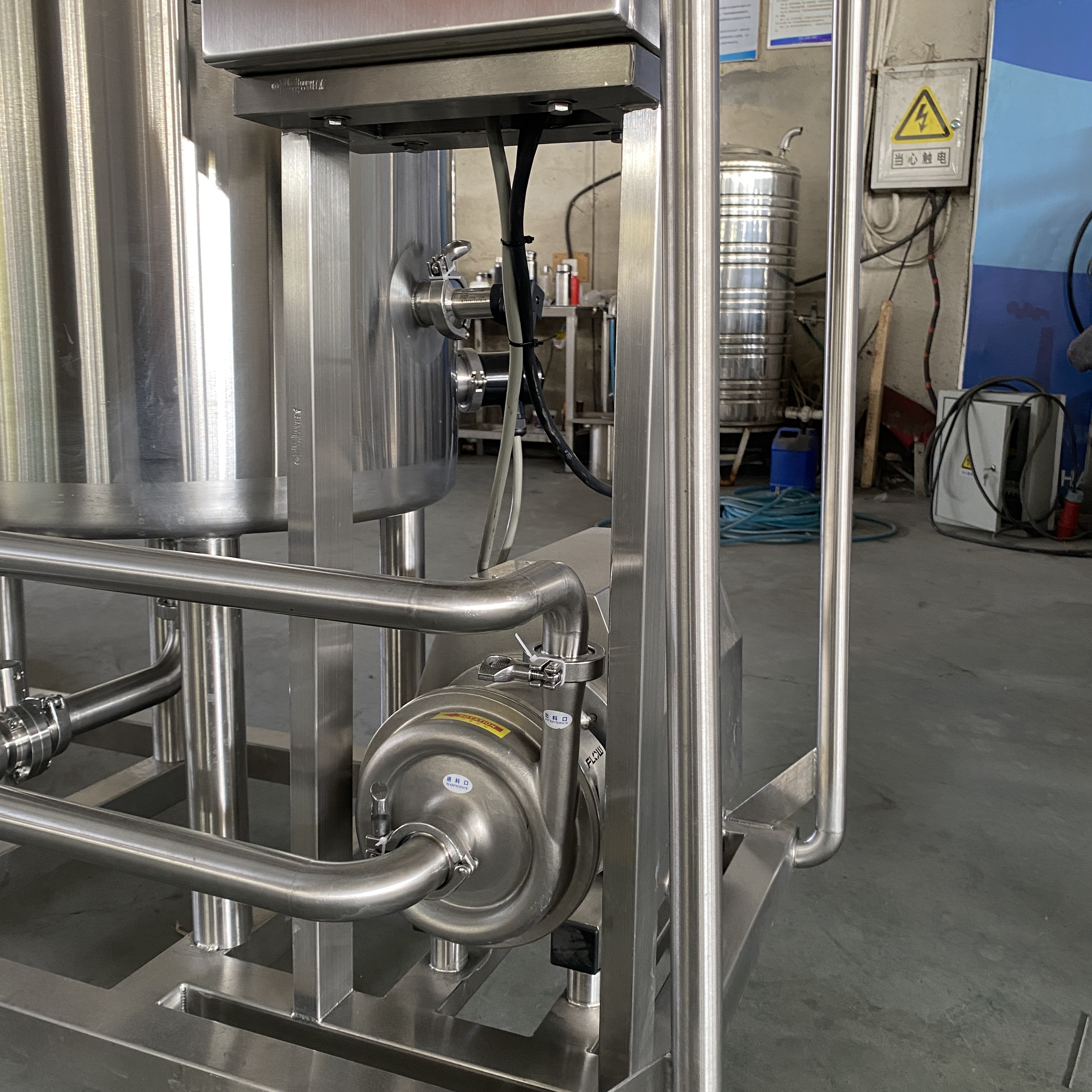

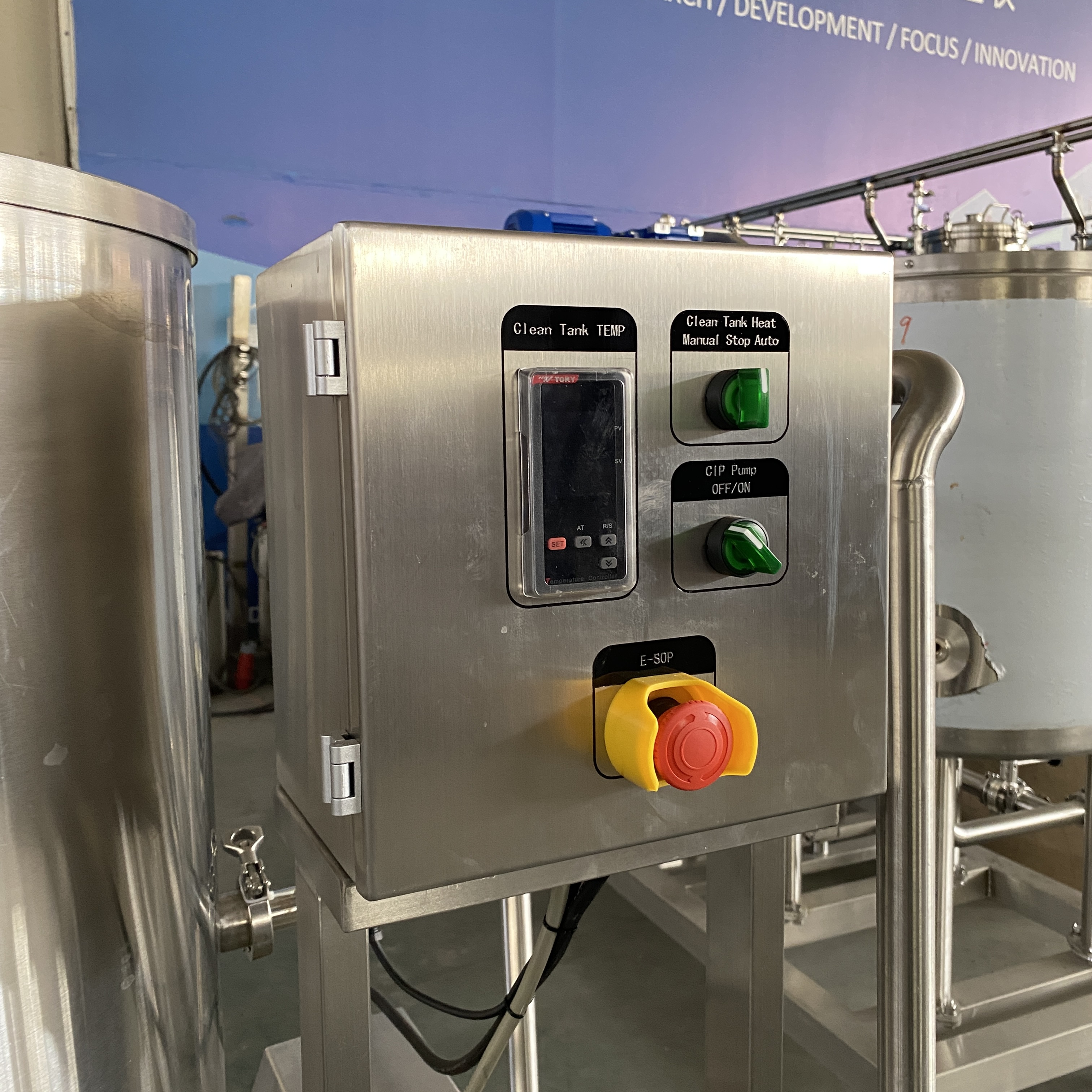

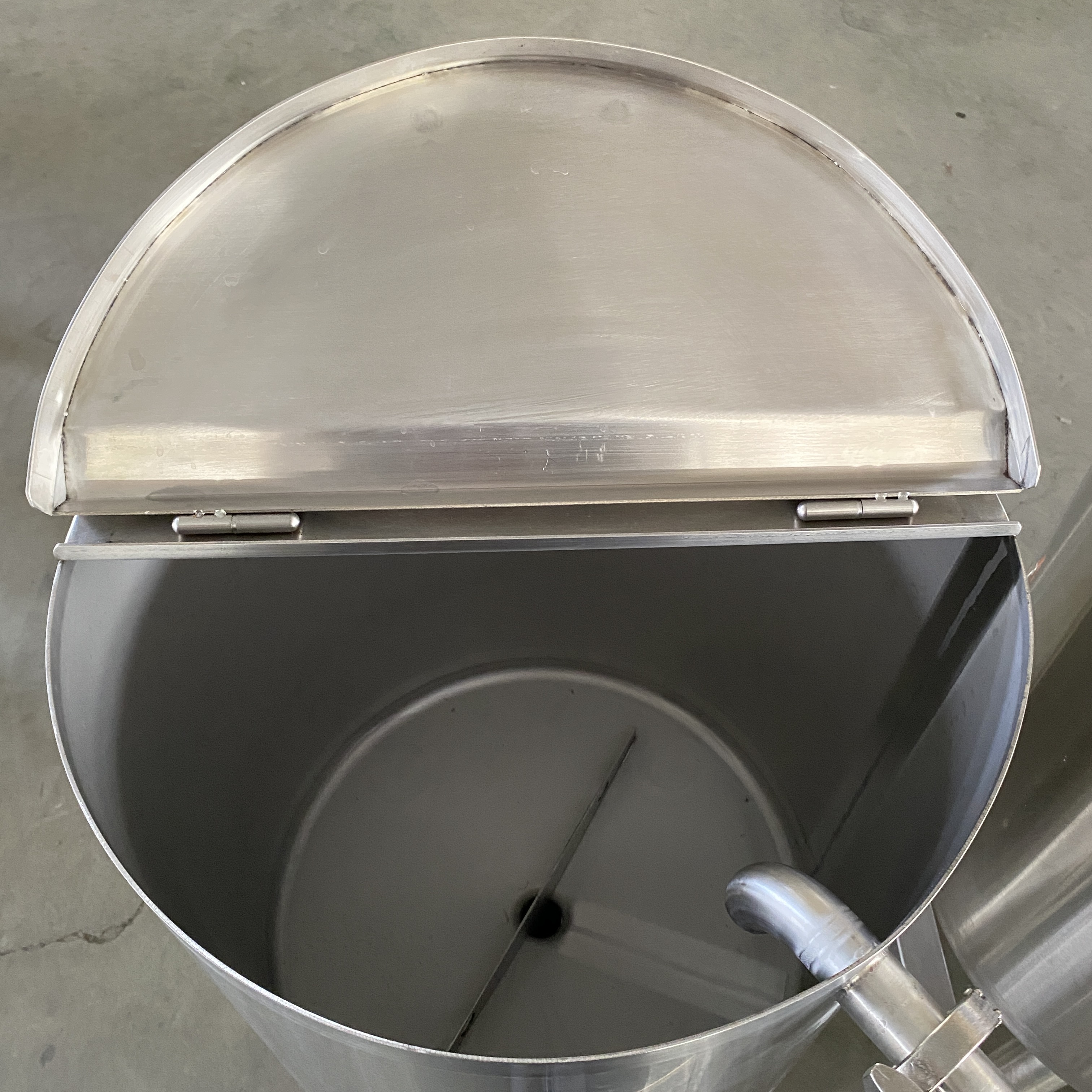

PID Control	Cleaning pump		Alkali tank

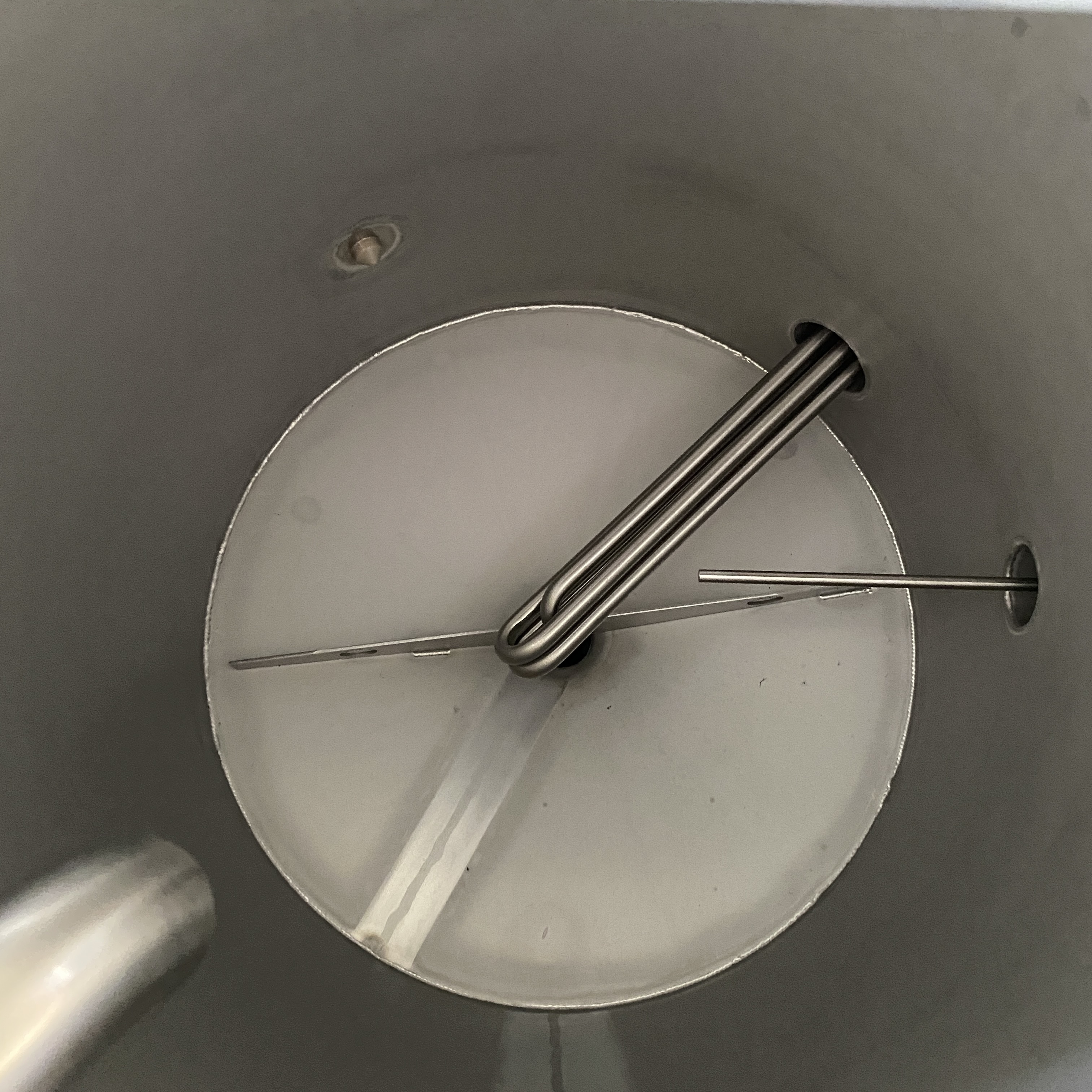

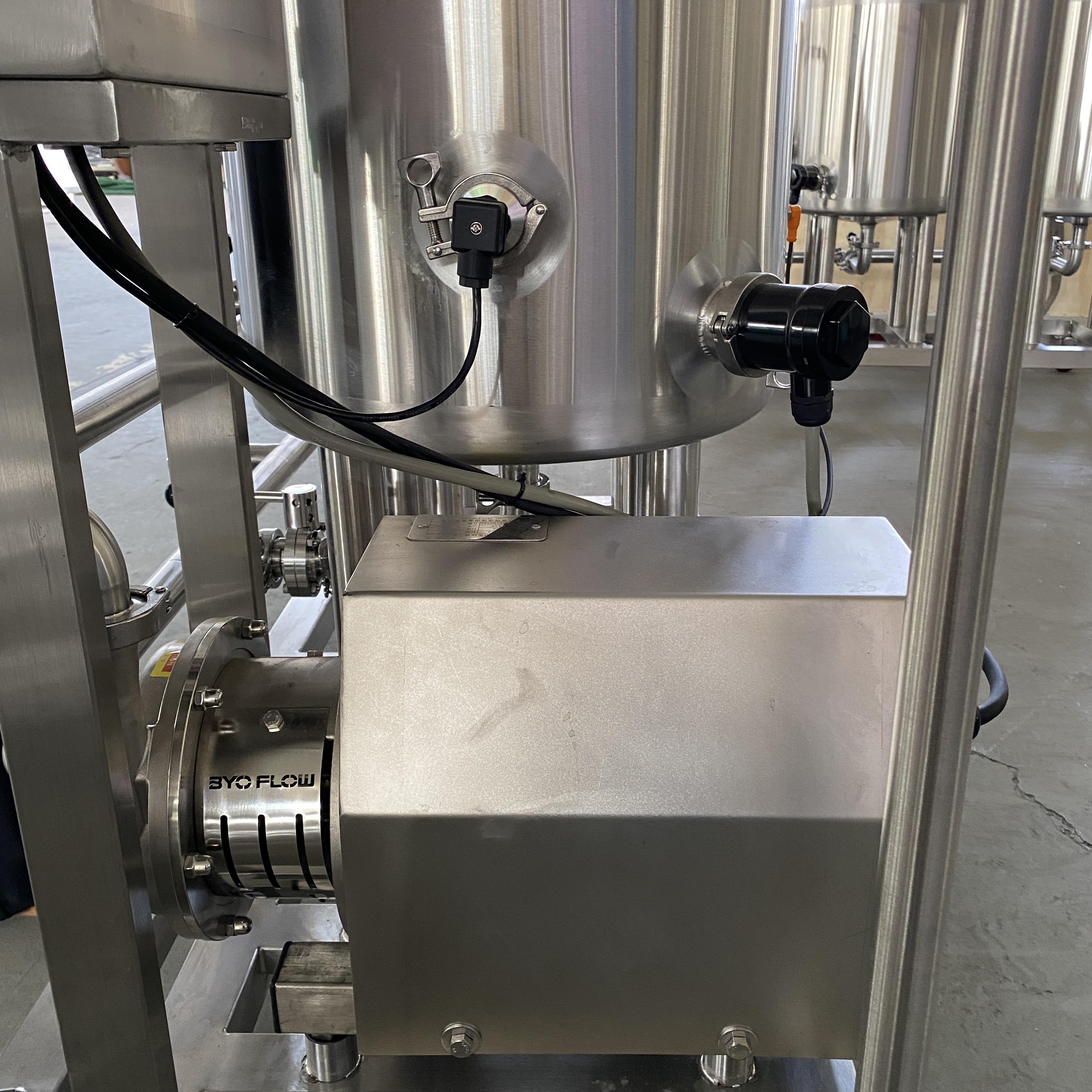

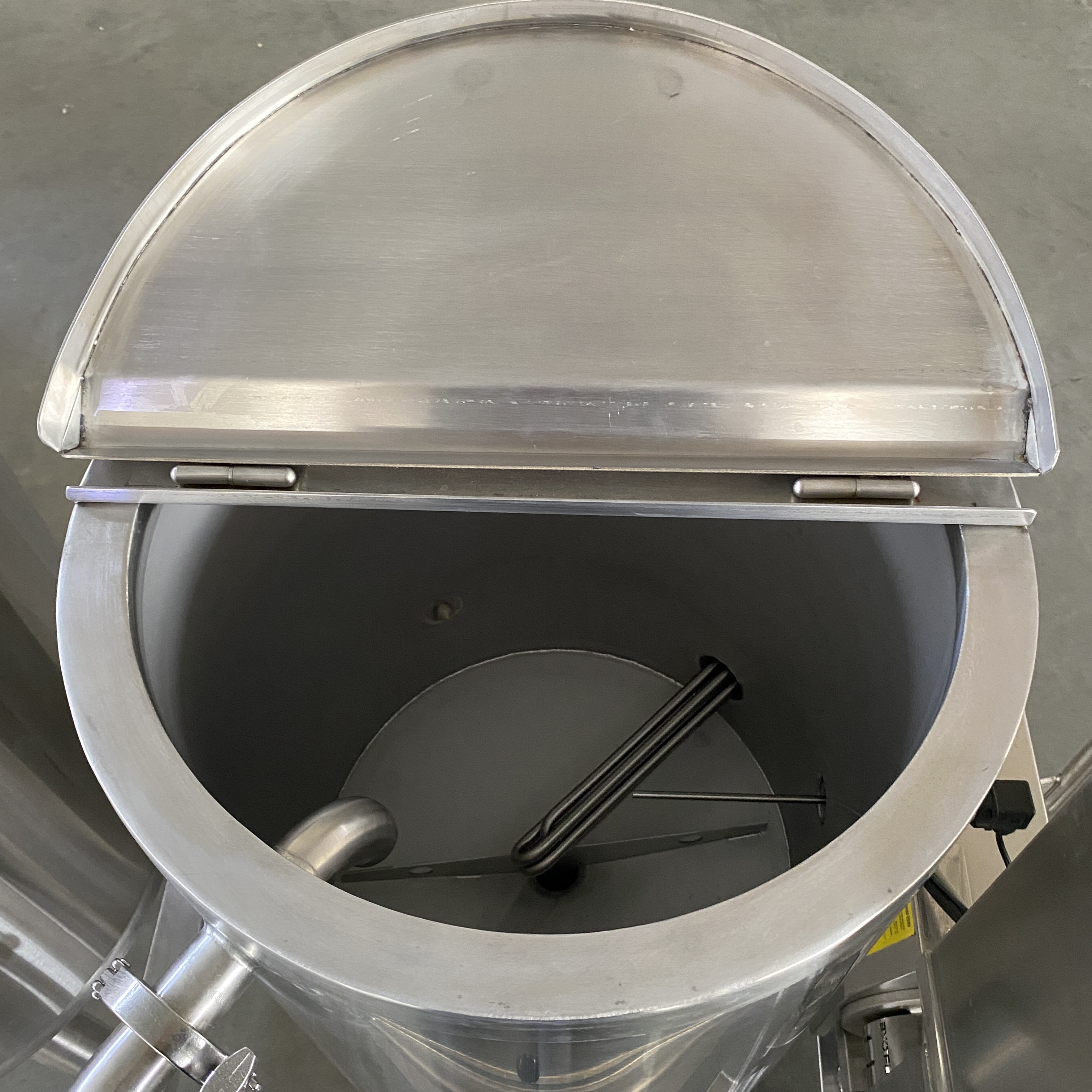

Disinfection tank	Heating Element		Cleaning pump

Optional

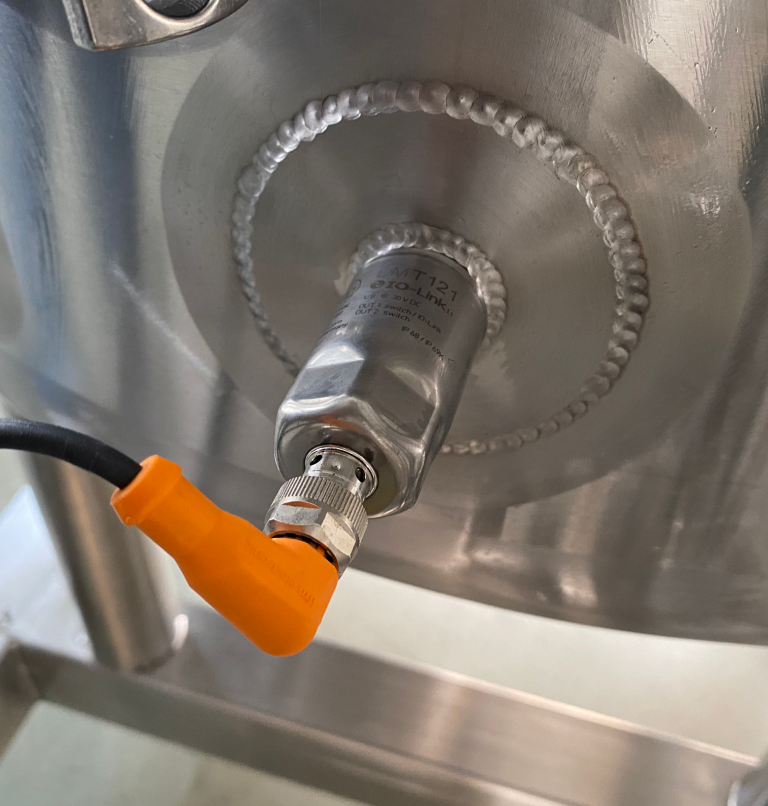

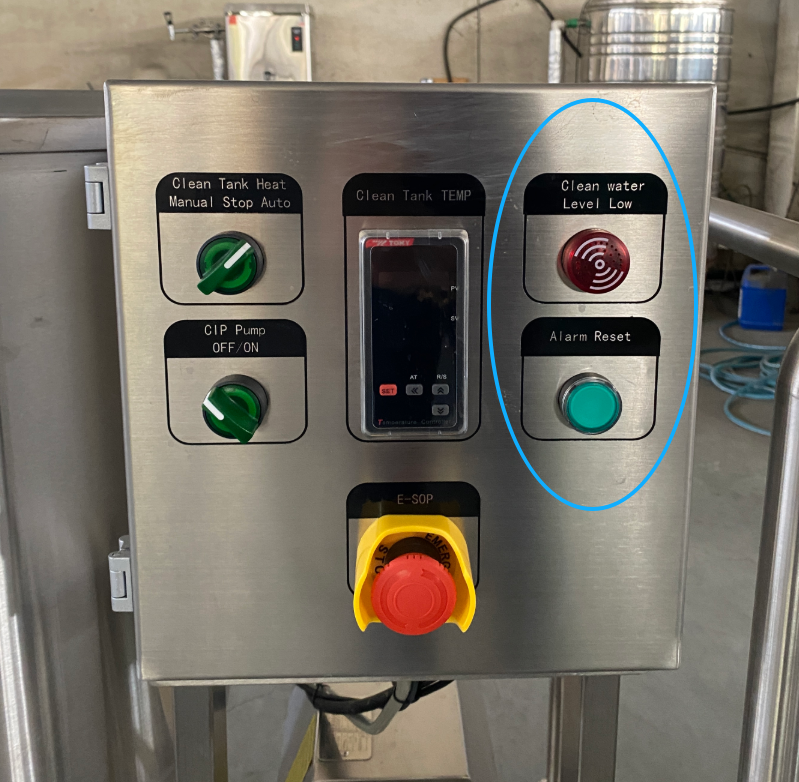

Liquid level sensors can be installed at the pump inlet and above the heating elements to prevent the pump from running dry and the heating elements from overheating due to insufficient liquid.

Quick FAQ

What is CIP?

CIP means Cleaning in Place. Cleaning solution is circulated through compatible equipment and pipework as part of a cleaning process.

Can it suit my brewery?

Suitability depends on vessel size, required flow and pressure, connections, and cleaning procedure. Share your system details for a configuration review.

Can the unit heat the cleaning solution?

The pictured control panel includes a temperature controller and heating selector. Please confirm the heating method and specifications for the final model.
