Double Heads Semi-Auto Can Filler

1.Dimension=0.55x0.40x0.80m, gross weight=20kg

2.Filling capacity: 3-4PCS/MIN/STATION | total 2 Stations

3.Filling Speed: 330ml-15s, 550ml - 20s

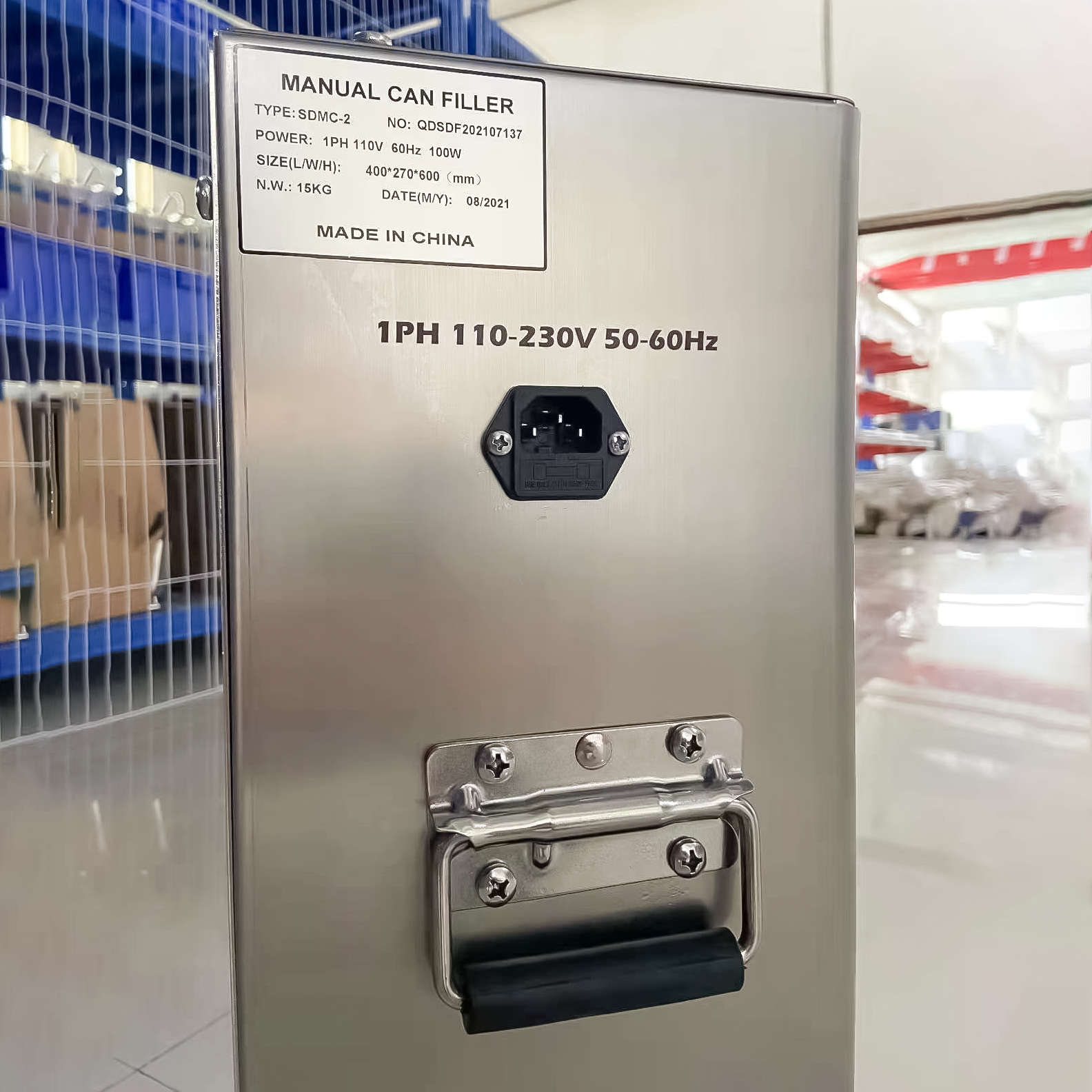

4.Power supply: Singel Phase 110V-240VAC 50/60Hz is default

5.Power consumption: 100w

6.Main Material is 304 Stainless steel

7.Beer Source Pressure:0.08-0.15MPa  (12-22psi)

8.Co2 Pressure: 0.05-0.08MPa (9-12psi)

9.CO2 Regulator 20 psi from plant system connected to canning system with 3/8 OD barbed fitting

10.Installation source: CO2, Ice water (-2℃~ -1℃)

11.Can Volume type: 330ml-568ml

Advantages:

1. The filling amount is rather average,the adjustment is convenient.

2. Main frame adopts SUS304 liquid contract parts adopts SUS316.

3. It adopts special filling valve which makes washing and cleaning convenient.

4. Made of food grade stainless steel, the whole is small and exquisite

5. Small floor area and convenient operation.

6. The filling process includes release CO2 ,filling and exhaust.

7. Using isobaric filling method

8. It is the ideal choice for small brewery

There are three difference tubes:

1. Tube A is a CO2 tube: which can release the CO2 to the can and during the filling process prevent the beer from being oxidized.

2. Tube B is Beer outlet tube: which allows beer to through this tube and then filling in the can.

3. The shortest one C is a liquid level sensing tube, which can sense the beer in advance to prevent overflow.
