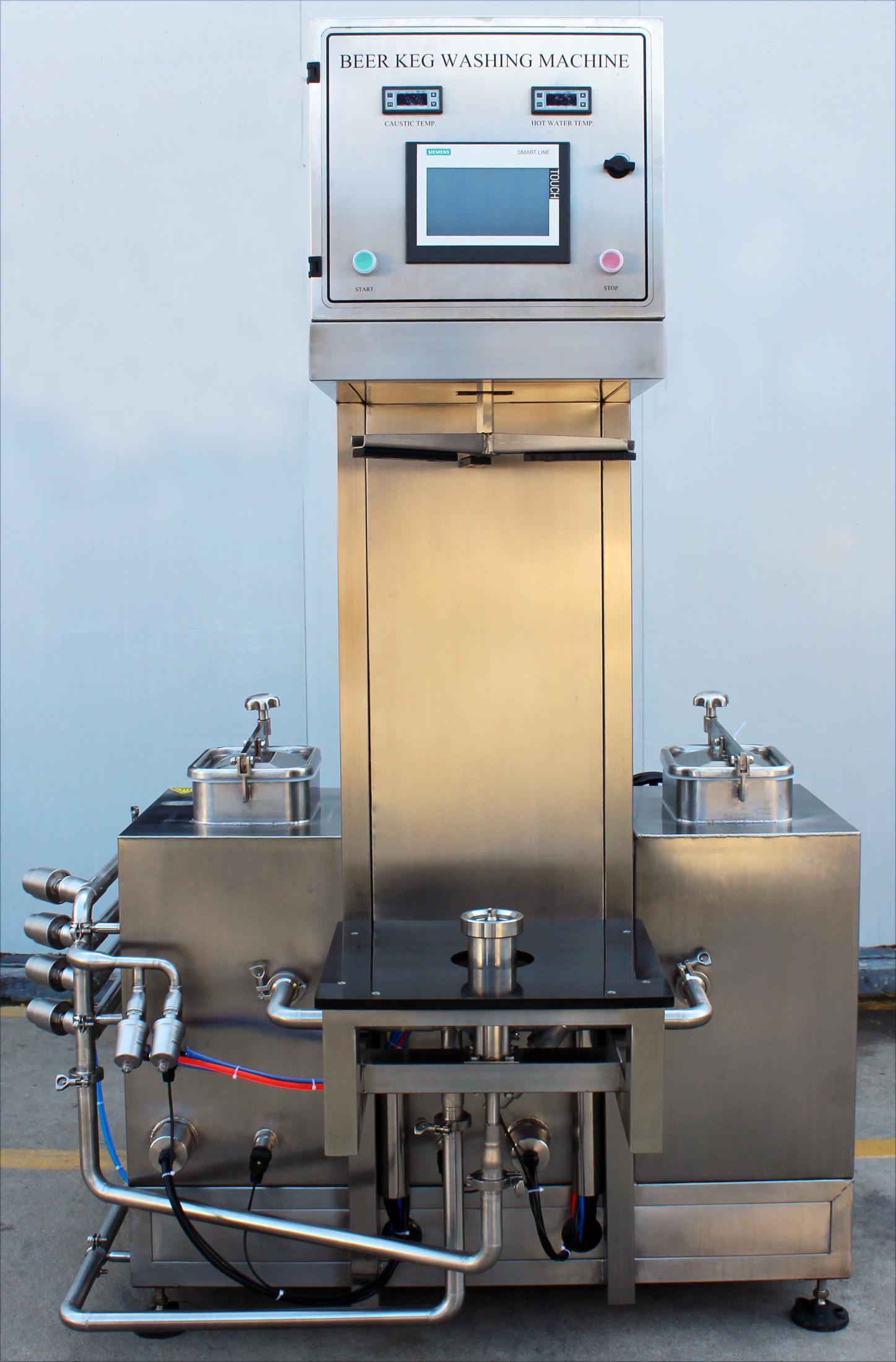

Single-head 3 tanks 3 pumps Keg Washer

Keg Washer- made of stainless steel 304. It has 3 tanks and 3 pumps.
Availability:
Quantity:

Keg Washer

Single- head 3 tanks  3 pumps



keg washer (3 tanks 3 pump) keg washer (3 tanks 3 pump) 02


Introduction


1. Material:SUS304

2. Power:380V 50HZ, 3 phase(customized for local power)

3. Dimension:1400*1600*2040mm, packaging:1500*1750*2280mm

4. Weight:264Kg, packaging 414Kg

5. Washing Capacity: 50-60pcs/h

6. Power port: 3P+N+G

7. Water tank material:SUS304, volume=100L (3 PCS)

8. Heating method & Power consumption:optional

Steam Coiler : 3KW &  Electrical Heater: 15KW

9. Temperature probe :NTC

10. Time setting way:Siemens PLC 200 Smart

11. Connect type:

water inlet and drain outlet:1.5" Tri-clamp

Steam inlet: DIN male fitting

12. Pear type: A,S,D,G connection type(optional)

13. EURO DIN AMERICAN 20L-60Lkeg



Washing working procedure

Lock down  →   air purge/drain off   →   hot water 1 washing   →    air purge/drain off   →   caustic washing   →   air purge/to caustic tank   →   hot water 2 washing   →   air purge/drain off    →   sanitizer sterilize    →    CO2 purge/to sanitizer tank   →   hot water 3 washing    →   CO2 purge/drain off   →   CO2 fill


Lock down   →   air purge/drain off    →   hot water 1 washing   →   air purge/drain off    →    caustic washing   →   air purge/to caustic tank   →   hot water 2 washing   →   air purge/drain off   →  acid washing   →   air purge/to acid tank   →   hot water 3 washing   →   steam purge/drain off    →   steam sterilized   →    steam keep pressure sterilized   →   CO2 purge/drain off   →   CO2 fill
