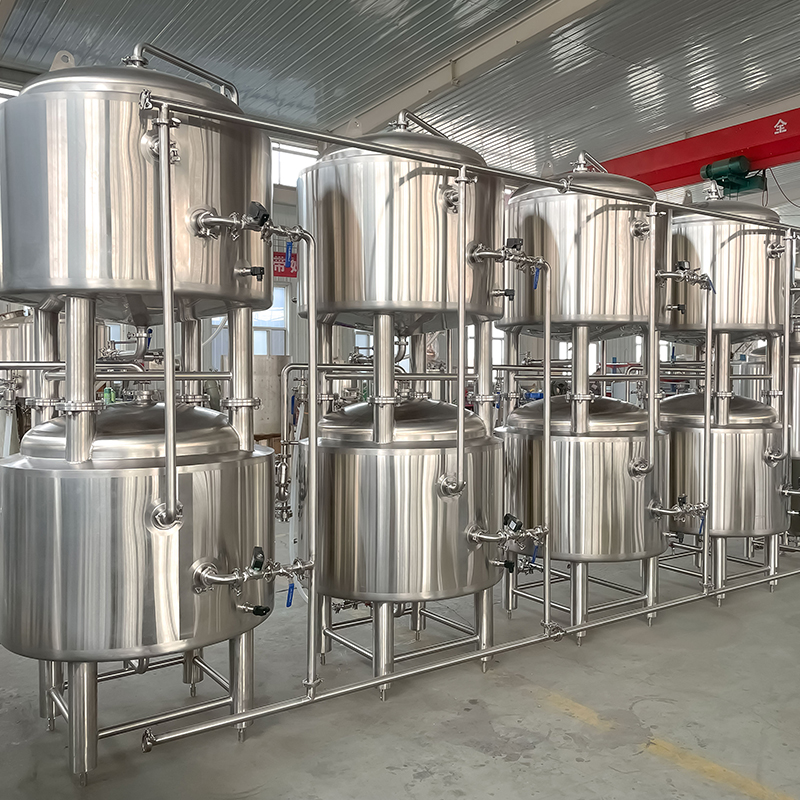

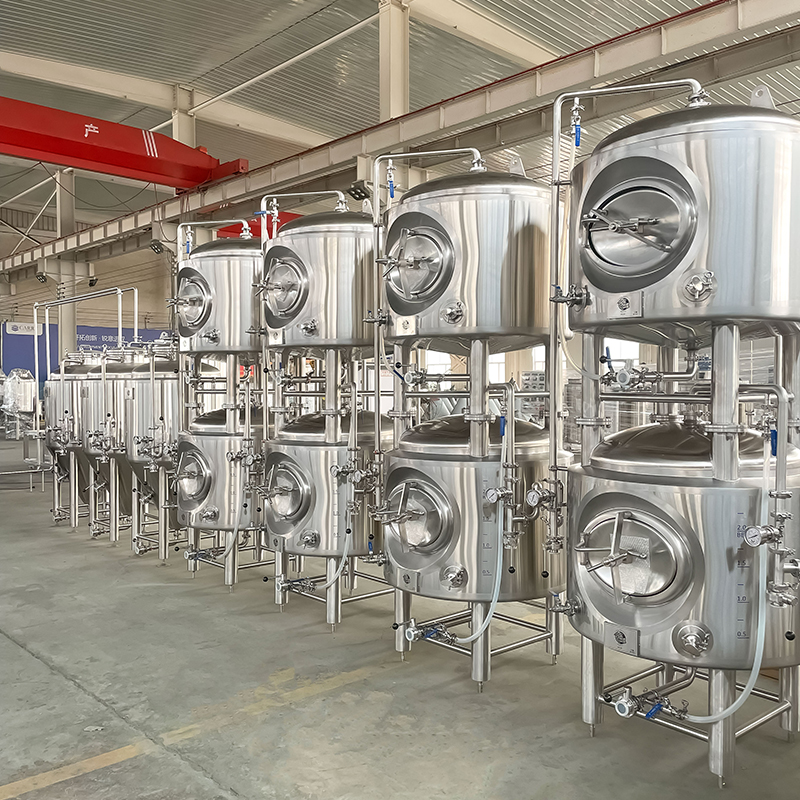

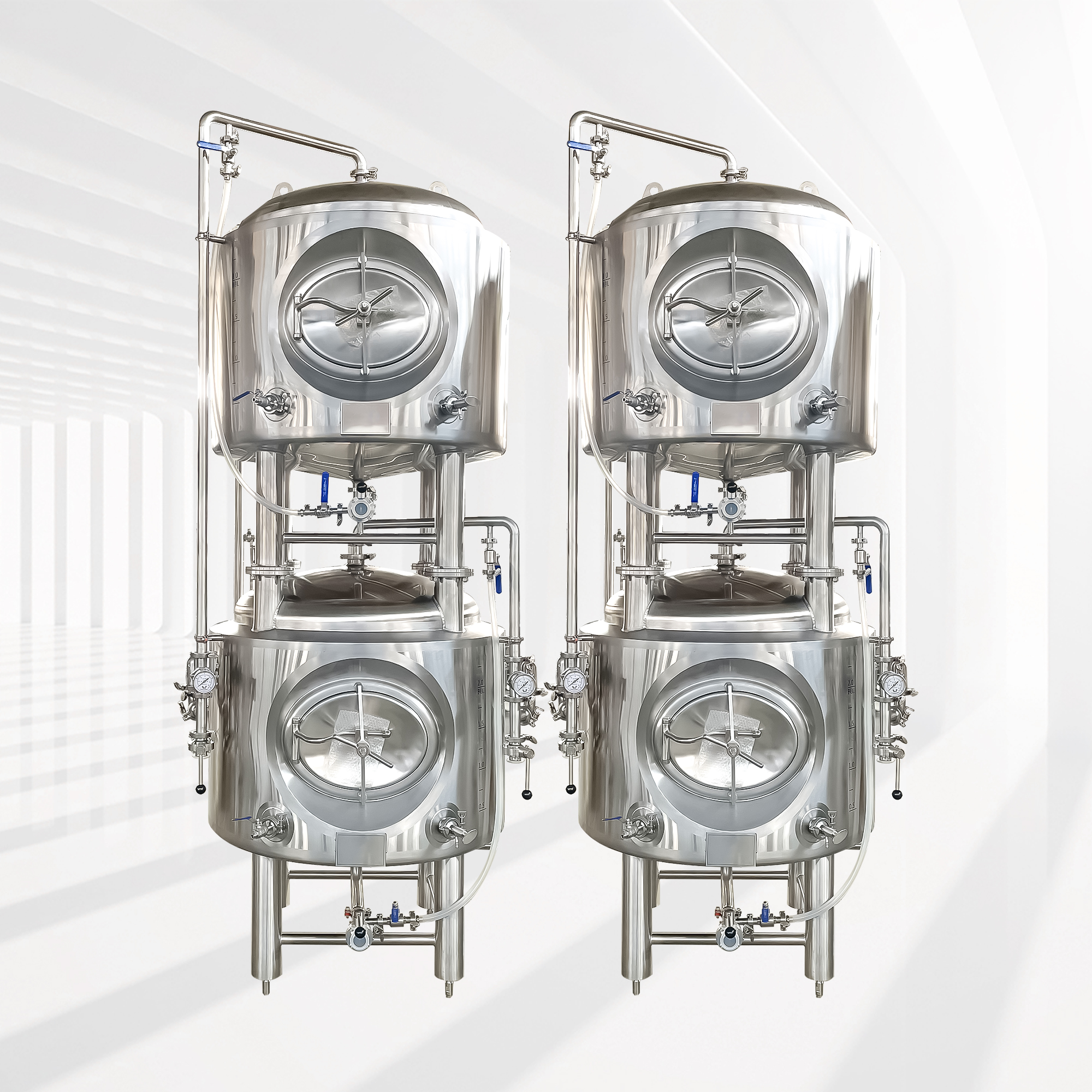

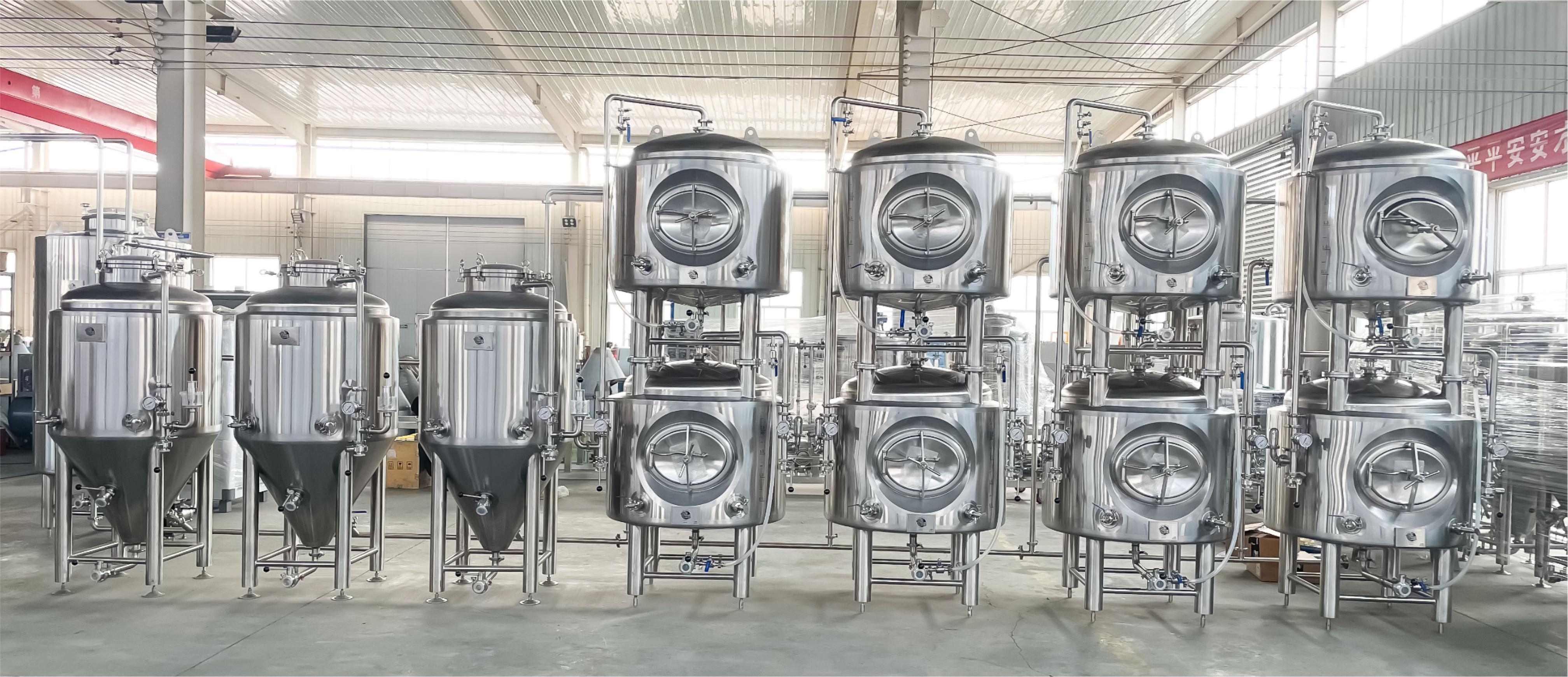

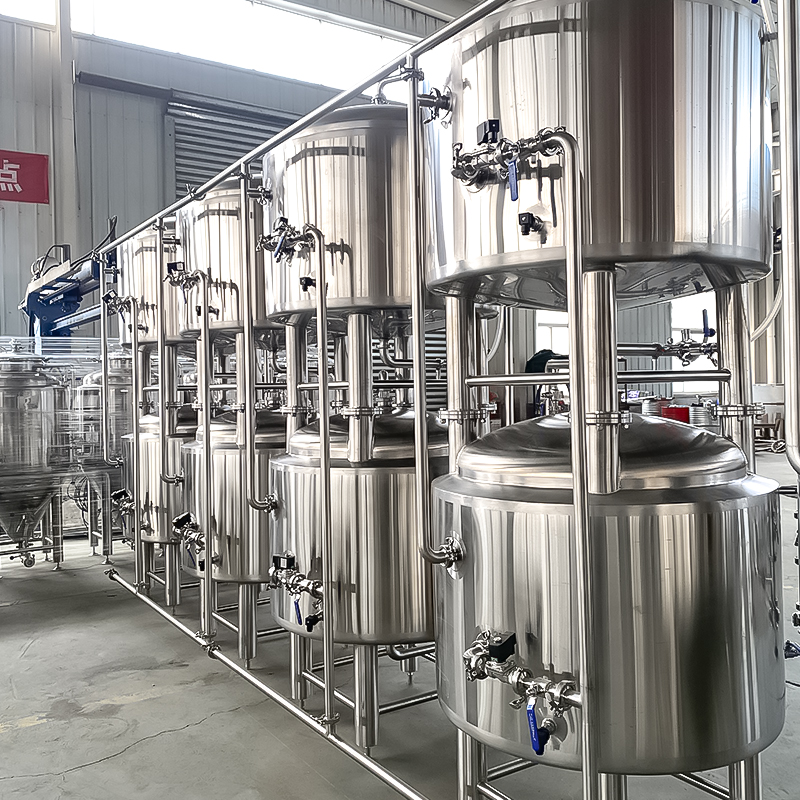

A space-saving and high-capacity solution designed for modern breweries. This system features two vertically stacked Bright tanks, optimizing floor space while doubling storage capacity. Ideal for small to medium-sized breweries, this design ensures efficient brewing operations without compromising on quality or performance.
PARAMETER
If you are in the process to schedule your unique brewery project, please feel free to send message to us, Carry Brewtech team is looking forward to providing more support to your business. Cheers!
1. Effective volume=2BBL, with 10% extra head space
2. Dual structure, total effective volume as 2 x 2BBL=4BBL
3. Side shadowless manhole for easy access
4. CIP Cleaning ball with CIP arm on side
5. Pressure gauge & PRV valve
6. Carbonation fittings & Sample valve
7. Liquid level tube with ball valve on each end
8. Liuqid level sticker to show volume inside
9. Double layer with dimple cooling jacket and insulation layer
10. Flange connected, strong structure for reliable using
DETAIL MAKES PERFECT

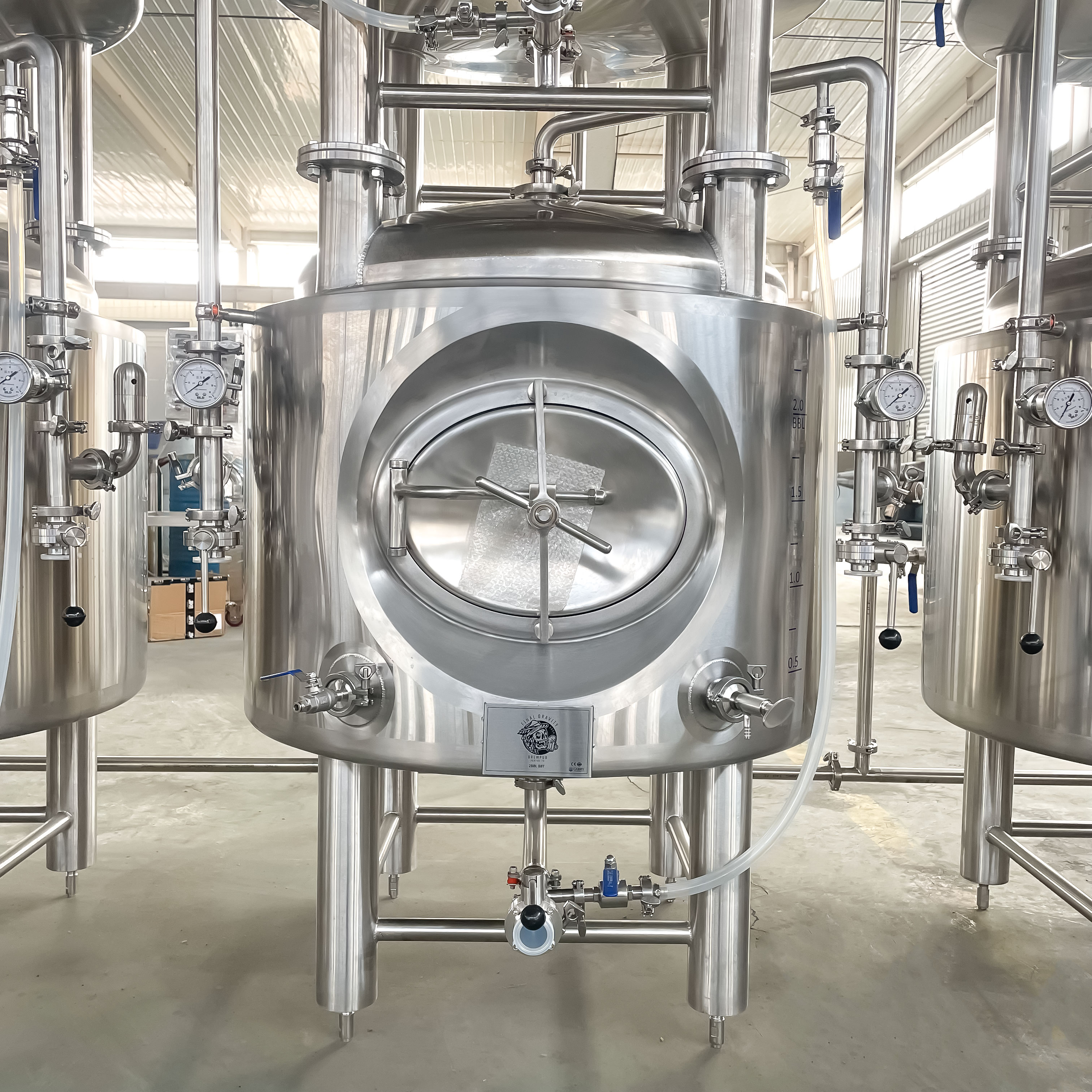

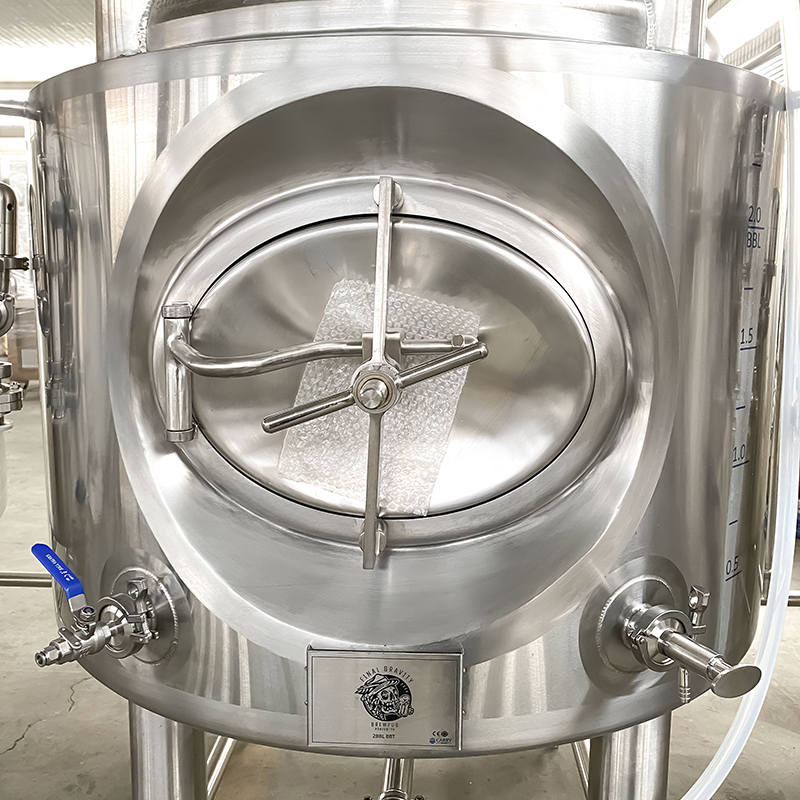

Side manhole for easy access

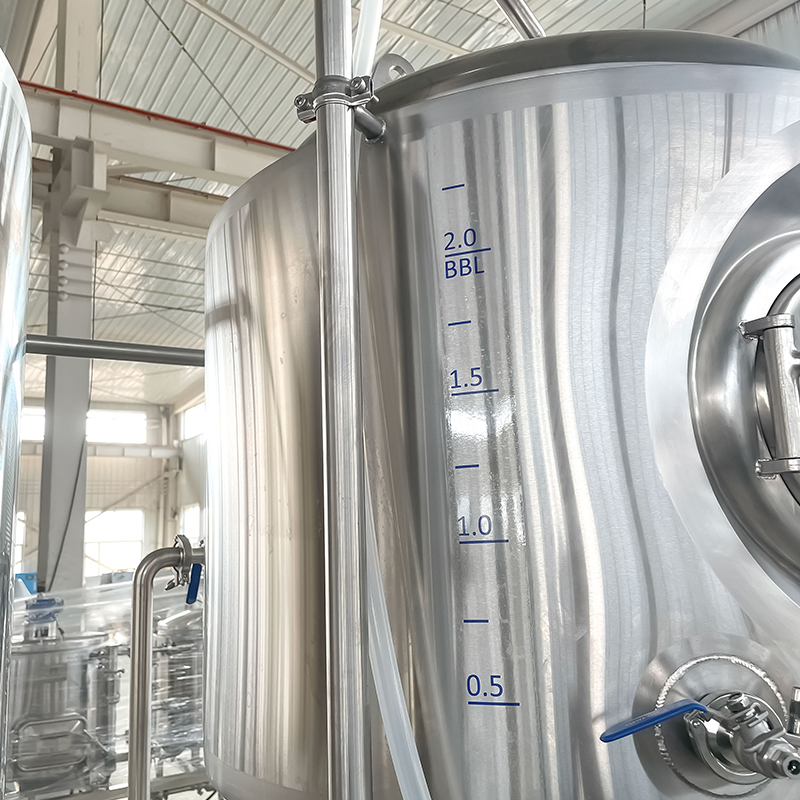

level tube with sticker
Carbonation fittings pre-installed
Pressure gauge & PRV

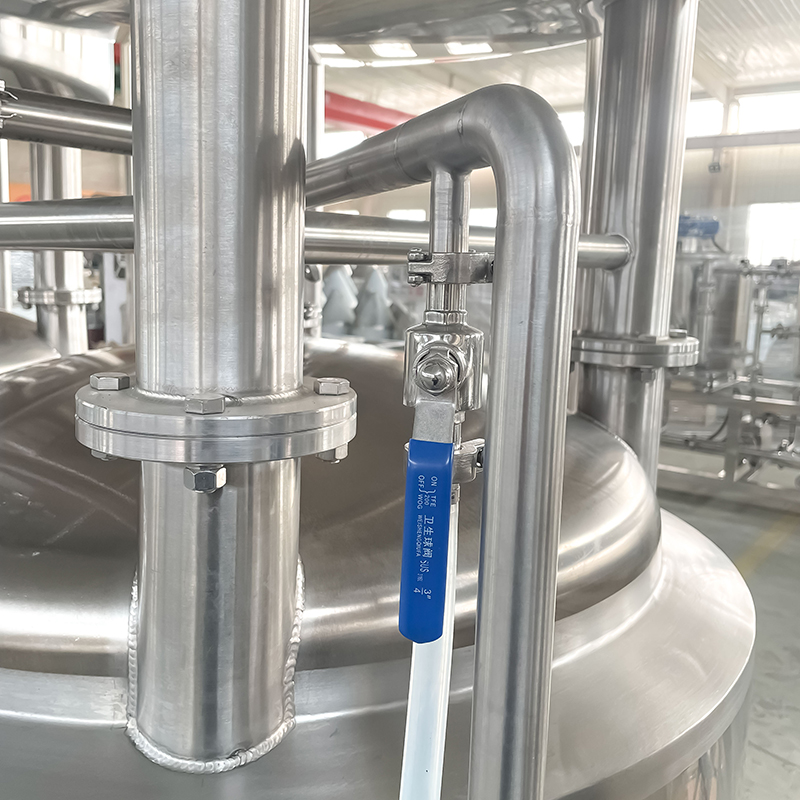

Flange connected for steady stacking up
Cooling pipeline pre-made from factory

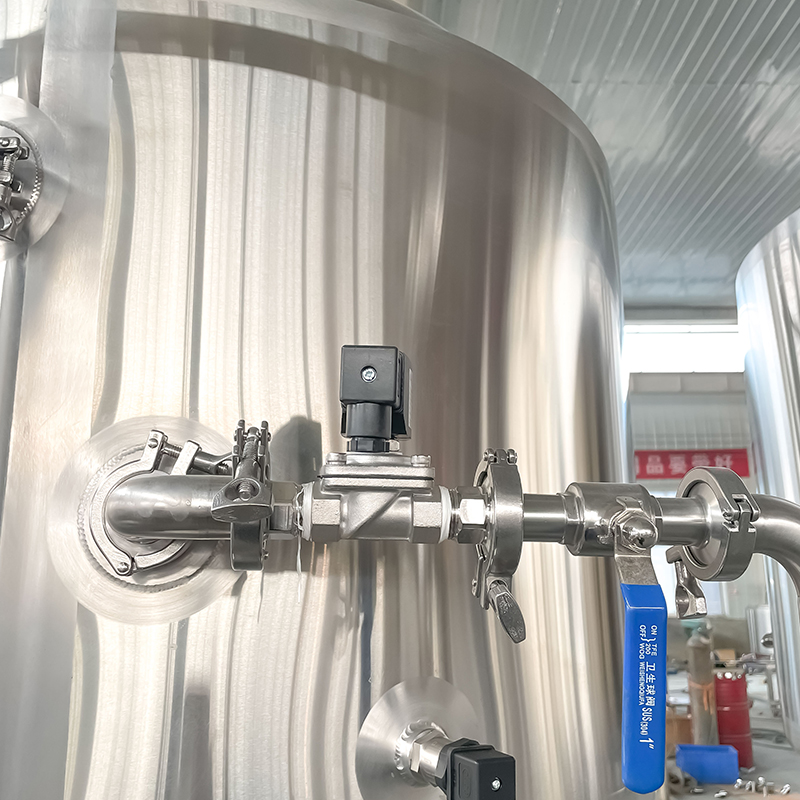

Solenoid valve for cooling on/off control

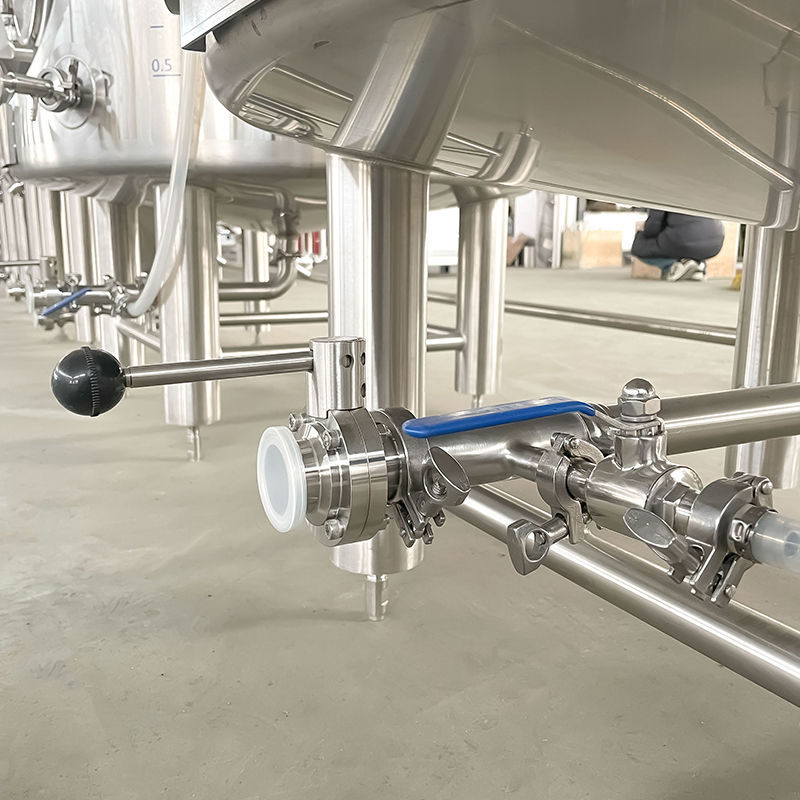

Bottom drain off valve
Reliable pre-installation from factory
DESIGN SKETCH
| Dimension | 2BBL stacked: diameter=960mm, total height=2540mm |
| Storage capacity | 2BBL x 2; (customizable, such as: 250L, 300L, 500L, 5BBL, etc.) |
| Pressure range | Testing pressure=3 bar, suggest working pressure is under 2.2 bar |
| Cooling method | Cooling jacket on side of tank wall, Tri-clamp inlet/outlet |
| Certification | CE (PED), ISO, UKCA |
| Material | SUS 304 stainless steel |
If you are looking for different solution, please contact Carry Brewtech for customized solution.
