Exhibition Introduction
Carry Brewtech is excited to announce our participation in Drinktec 2025.

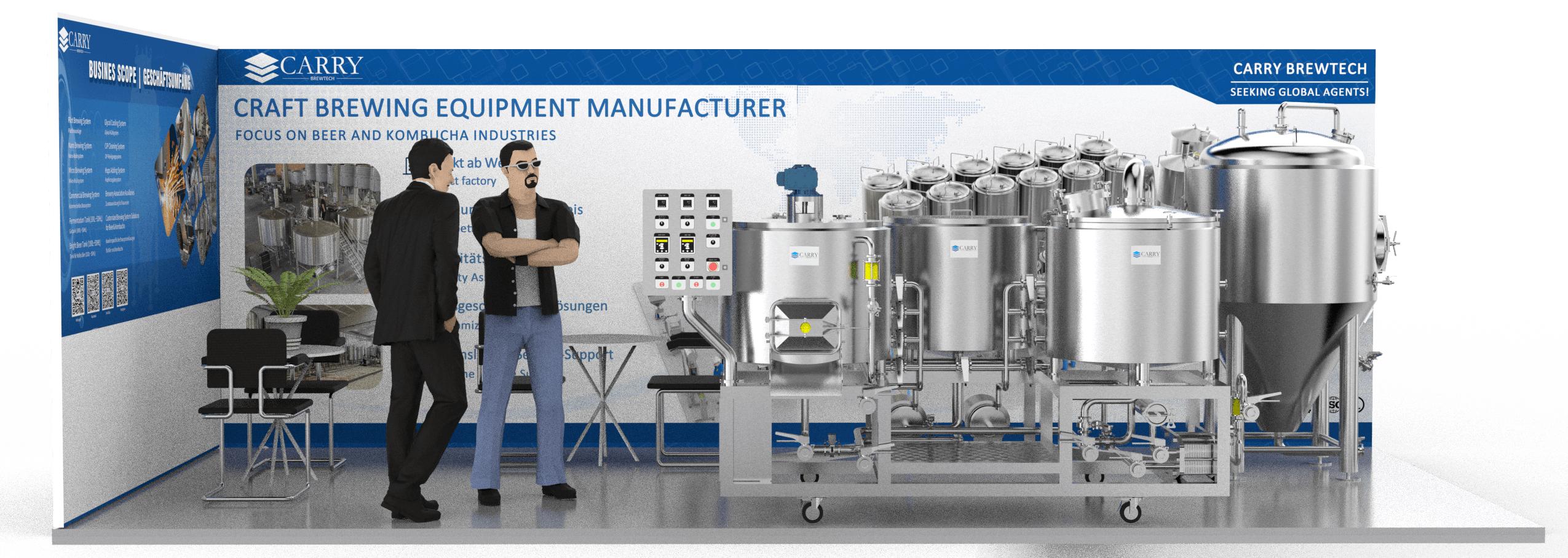

During the exhibition, Carry Brewtech will show our best-selling 200L 3-Vessel brewhouse system and a 500L fermentation tank, which is the most popular unit for brewery applications.
Click here to join us and get the FREE Ticket for a 5-day visit, invitation code from Carry Brewtech: DRI25CARRYBREW
Booth Number: Hall C4-631
Venue: Trade Fair Center Messe München, Germany
Date: DRINKTEC 2025, Monday, 15th to Friday,19th September 2025
200L MICRO BREWHOUSE - 2025 NEW DESIGN
2025 New design 200L 3-Vessel Brewhouse, can be customized into different sizes, such as 2BBL, 250L, 300L, 3BBL, 3.5BBL, 400L per brew batch.
Effective volume=200L, max volume can be 290L
Double layers with insulation, perfect temperature maintenance capacity
Fully electric heating system, easy operation
All-in-one unit, it comes with tanks, pumps, valves, control cabinet, PHE, etc.
Quality guaranteed from the direct manufacturer
It is equipped with an individual platform in the middle, which is an excellent working center for brewers. Super convenient to operate the entire process between tanks. INLlNE valve trees are all reachable, making your brew day much easier. With wonderful features and design, it would be the best choice for your brewpub.
|
Configuration
| 200L 3-Vessel Brewhouse 2024 NEW DESIGN |
| Combinations | Left | Middle | Right |
| Mash/Lauter Tank | Hot Water Tank | Kettle tank |
| Nominal Volume | 200L/290L |
| Liquid transfer | 1T/h sanitary centrifugal pump, wort pump, Hot water pump |
| Control Mode | PID instrument & switch button control |
| Heating Method | Electric heating (optional: steam heating) |
| Max consuming power | 26kw |
| Working Voltage | 380V, 50HZ, 3phases |
| Mashing process | Support Step mashing recipes, RIMS with Mash tun |
| Add-ons | Grain raker, indoor condensing pipe, Level sensor, RIMS, Condensing lid on kettle tank with Glass manhole, valve trees |
| Dimension | 2500*1772*1736mm |
| Gross weight | 750kg |
| Production capacity | 200L wort per brew batch, max to 2 batches per day |
|
Focus on the details
200L 3-VESSEL Brewhouse system
Vinasse door with sight glass in the middle
High quality Control Cabinet
Manual open lid with handle
Patented Grain Rake system
Butterfly Valves coming with letter etching
Indoor condensing unit on kettle tank
Dual Pump pre-installed on the frame
Plate heat exchanger with oxygenation device
| Recommended Product
Carry Brewtech specializes in entry-level brewing equipment. OUR TEAM can provide free consultation solutions for your business based on 100L/batch to 2,000L/batch.
Below are some more hot-selling products. Welcome to click and find more information. Please just feel free to CONTACT US if you have any questions.
We are ready for your service whenever you need. Cheers!
200L~300L LINE Series 3-vessel brewhouse system
500L NOVA Series 2-vessel brewhouse
200L~400L STAR Series 3-vessel brewhouse
100L~500L Small conical fermenter
100L~150L SMART Series 3-Vessel Brewhouse
500L~3000L ZIP Series 3-Vessel brewhouse system
500L~50hL Conical Fermentation Tank
100L~500L Bright tank
500L~20HL Micro 2-vessel Brewhouse
About Drinktec 2025
Drinktec is the world's leading trade fair for the beverage and liquid food industry.
What drives the global beverage and liquid food industry? Exhibitors and visitors have been finding answers to this question at drinktec since 1951.
Drinktec sees its task as advancing the global beverage and liquid food industry and creates a space for encounters, provides a stage for solutions, and sets impulses for the future at the Munich Trade Fair Centre.
Find Carry Brewtech at:
Booth Number: Hall C4-631
Venue: Trade Fair Center Messe München, Germany
Date: 15~19 September 2025
If you have any customization needs, please feel free to contact us.
Contact Details:
- Email: info@carrybrew.com
- WhatsApp: +86 15662675200
- Website: www.carrybrew.com
